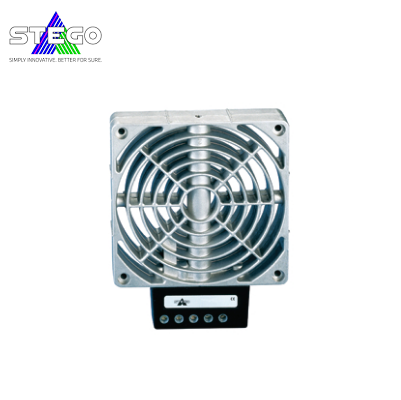

Quạt sưởi  03113.0-00  Stego

Heating element high performance cartridge
Overheat protection built-in temperature limiter
Heater body die-cast aluminum, glass bead finish
Axial fan, ball bearing service life 50,000 h at 77 °F (25 °C)
Air flow, free blowing see table below
Axial fan connection 2-pole terminal AWG 14 max. (2.5 mm²), terminals L2/N2
Connection 3-pole terminal AWG 14 max. (2.5 mm²), torque 0.8 Nm max.
Connection housing plastic, UL 94V-0, black
Mounting clip for 35 mm DIN rail, EN 60715
Mounting position horizontal
Operating / Storage temperature -49 to +158 °F (-45 to +70 °C)
Protection class / Protection type I (grounded) / IP20
Approvals UL File No. E234324 (all), EAC (all), VDE (AC 230 V only)
