FLOW METER - Đồng hồ đo lưu lượng F-4400
Xuất sứ: USA
Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG
Hãng sản xuất: ONICON VIET NAM
Ứng dụng sản phẩm: Automotive

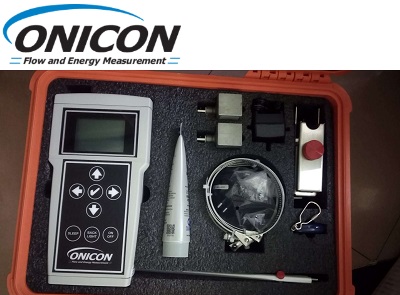

Mr. BảoThe F-4400 ultrasonic flow meter is ideal for flow testing during test and balance. It is also useful for temporary flow monitoring in existing systems to establish baseline demand data.
Ideal for Temporary Flow Measurement
Clamp-on transducers allow for quick installation with no shutdown, no drilling and no pressure drop. Each meter is provided with a built-in data logger making it possible to monitor flow over time.
Designed for Multiple Pipe Materials and Sizes
The F-4400 is designed to work with many different pipe materials. A partial list of common pipe materials includes carbon steel, stainless steel, copper, PVC, HDPE and fiberglass. The meter will work with pipe sizes ranging from 2” to 48” in diameter.
Simple to Set Up and Use
The F-4400 is easily configured through the handheld backlit display and 5-button keypad interface. Just enter the pipe material and OD, wall thickness and fluid type. The F-4400 will then display the correct transducer separation distance.
