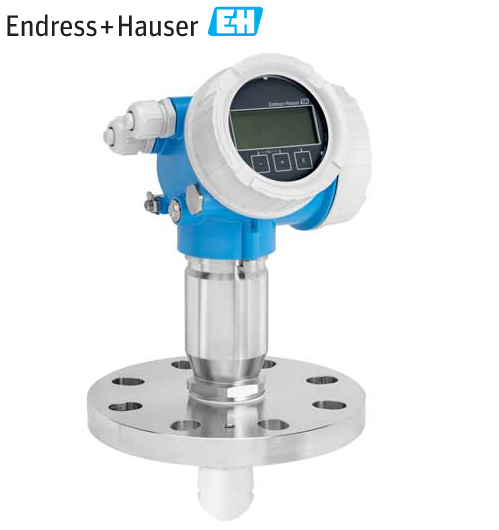

Model: FMR60-AAACCAGAA4GGJ/ Cảm biến báo mức dùng sóng radar (Level transmitters)/ Endress Hauser

Level radar

Characteristic / Application

For basic level measurement in liquids, pastes and slurries;

non affected by changing media, temperature changes, gas blankets or vapor;

For applications with many obstacles due to the very small beam angle.

Specialities

Heartbeat Technology,

SIL 2/3 according to IEC 61508,

Bluetooth® commissioning,

Operation and maintenance SmartBlue App,
Safety and reliability with Multi-Echo Tracking

HistoROM

RFID TAG for easy identification

Supply / Communication

2-wire (HART)

Bluetooth® wireless technology and App (optional)

Frequency

W-band (~80 GHz)

Accuracy

+/- 1 mm (0.04 in)

Ambient temperature

-40…+80 °C

(-40…+176 °F)

Process temperature

-40…+130 °C

(-40…+266 °F)

Process pressure absolute / max. overpressure limit

Vacuum …16 bar

(Vacuum … 232 psi)

Main wetted parts

PTFE antenna

PP or 316L process connections

Process connection

Thread:

G1-1/2", MNPT1-1/2";


Flange:

UNI DN80…DN150 (3"…6")

Max. measurement distance

50 m (164 ft)

Communication

4…20 mA HART,

Additional switch,

Bluetooth® wireless technology

Certificates / Approvals

ATEX, FM, CSA C/US, IEC Ex, INMETRO, NEPSI, EAC

Safety approvals

SIL 2, SIL 3

Design approvals

EN 10204-3.1

Options

Display,

Customized parameterization,

Remote operation via SmartBlue App using Bluetooth®,

Gas-tight feed through,

PWIS free

Application limits

Process temp. > 130 °C (266 °F) -> FMR62

Very aggressive media -> FMR62

Strong turbulences and foam, stilling well and bypass -> FMR5x, FMP5x
