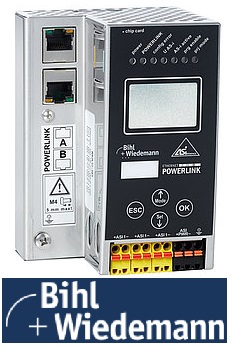

Gateway in Stainless Steel _BWU3312

Xuất sứ: GERMANY

Nhà cung cấp: ANS- ANH NGHI SƠN ĐÀ NẴNG

Hãng sản xuất: BIHL+WIEDEMANN VIET NAM

Ứng dụng sản phẩm: Automotive

Liên hệ tư vấn

Ms. Diệu

dieu.ans@ansvietnam.com

0902337066

0962678764

anhnghisonhcm

* Product description

24 Volt ASi-3 POWERLINK Gateway in Stainless Steel, 1 ASi master, 1 power supply for 2 ASi networks, duplicate address recognition, ASi fault detector

* Technical data

Type 24 Volt ASi Gateway
ASi-5/ASi-3 ASi-3 compatible
Model Gateway
Protection rating IP20
Fieldbus interface POWERLINK
Number of ASi networks, number of ASi Master 1 ASi network, 1 ASi Master
1 power supply, 1 gateway for 2 ASi networks, inexpensive power supplies yes, max. 4 A/ASi network
Diagnostic and configuration interface -
Recognition of duplicate ASi addresses yes
ASi fault detector yes
Programming in C no
Inputs digital, EDM -
Inputs Safety, SIL 3, Cat. 4 -
Inputs safety, expandable to -
Outputs Safety, SIL 3, cat. 4 -
Safety outputs, independent according to SIL 3, expandable to -
Safety communication
