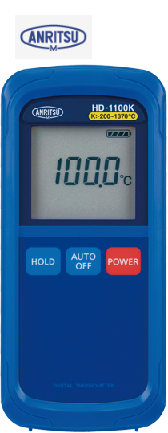

Handheld Thermometer HD-1100E / 1100K

Xuất sứ: JAPAN

Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG

Hãng sản xuất: ANRITSU VIET NAM

Ứng dụng sản phẩm: Automotive

Liên hệ tư vấn

Mr. Bảo

bao@ansgroup.asia

0962678764

0962678764

anhnghisonhcm

Measurement Range：E -200 to 800°C / K -200 to 1370°C

Waterproof Equivalent to IPX5
HOLD
The thermometer stops measurement
by the HOLD key and holds the present readings.
Auto power-off
The thermometer will turn the power off automatically after 5minutes.



Model HD-1100
Display LCD
Waterproof specifications Equivalent to IPX5
Input connector ASP
Input type Thermocouple Input: Type E, K
Channel 1ch
Signal source resistance MAX.500ohm
Measurement Range 1°C Resolution E -200 to 800°C
K -200 to 1370°C
0.1°C Resolution E

-104.9 to 504.9°C

(Switches automatically to 1°C resolution range when messured temperatures fall outside the 0.1°C resolution range.)
K

-104.9 to 504.9°C

(Switches automatically to 1°C resolution range when messured temperatures fall outside the 0.1°C resolution range.)
Measurement Accuracy 1°C Resolution 0°C to ± (0.1% of reading +1°C)
to 0°C ± (0.5% of reading +1°C)
0.1°C Resolution 0°C to ± (0.05% of reading + 0.2°C)
to 0°C ±0.5°C
Reference junction compensation accuracy ±0.2°C at 25°C±10°C
Temperature Coefficient ±0.01% of F/S per °C (F/S : full scale)
Operation Environment

0 to 40°C, 0 to 80%RH (Non condensing)

32 to 104°F, 0 to 80%RH (Non condensing)
Storage Environment

-20 to 50°C, 0 to 85%RH (Non condensing)

-4 to 122°F, 0 to 85%RH (Non condensing)
Battery life 300h
Power supply(Dry battery) 4 AA Alkali Batteries
Power supply(AC power) -
Sampling rate approx.300ms
Linearlizer Digital Linearizer method (Compliant with IEC 60584-1 (2013))
Dimensions(mm) approx. 76(w)×167(H)×36(D)  [Protruded parts excluded]
Weight approx. 350g [Include Batteries]
Supplied accessories Manual,Test report,Soft case,
Hand strap,4 AA Alkaline batteries
Compatible standards CE Marking, RoHS
