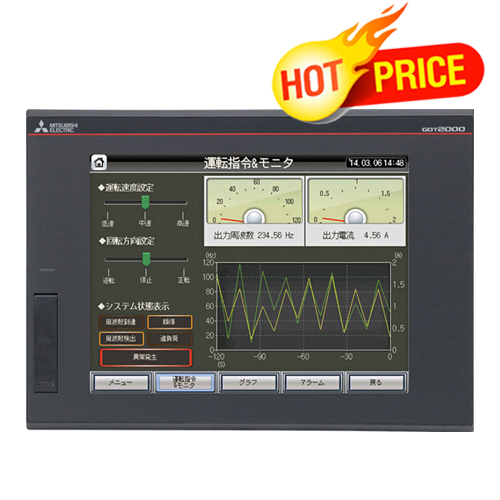

HMI GT2510-VTBA Mitsubishi

Nhà cung cấp: ANS Vietnam

Hãng sản xuất: MITSUBISHI ELECTRIC VIET NAM

Ứng dụng sản phẩm: Automotive

Liên hệ tư vấn

Thông tin sản phẩm
Thông số kỹ thuật

Mitsubishi Vietnam,HMI GT2510-VTBA Mitsubishi

GT2510-VTBA

Model name	GT2510-VTBA
Overview	10.4”, VGA, TFT color LCD 65536 colors, Panel color: Black, Power supply voltage: 100 V AC to 240 V AC
Conformance standard	UL cUL CE(EMC) CE(LVD) CE(RoHS) KC LR NK DNV ABS RINA BV

Model

Product name

Series name

Model name

GT2510-VTBA

GT25 model

GOT2000

GT25

Performance specifications

Display section^1 ^2	Display device
	Screen size
	Resolution
	Display size
	Number of displayed characters
	Display color
	Brightness adjustment
	Registrable number of screen
	Backlight
	Backlight life^*4
	Backlight color
Touch panel^3 ^11	Type
	Key size
	Simultaneous press
	Life
Panel color
Human sensor	Detection length
	Detection temperature
Memory	User memory	Capacity
		Life (number of write times)
Built-in clock precision
Battery	Type
	Data to be backed up
	Life
Built-in interface	RS-232 interface	Number of channel
		Transmission speed
		Connector shape
	RS-422/485 interface	Number of channel
		Transmission speed
		Connector shape
	RS-422/232 interface	Number of channel
		Transmission speed
		Connector shape
		Application
	RS-422 interface	Number of channel
		Transmission speed
		Connector shape
	Ethernet interface	Number of channel
		Transmission speed
		Connector shape
	Bus interface	Type
		Number of channel
	RGB interface
	Printer interface
	USB interface (host)	Number of channel
		Maximum transfer rate
		Connector shape
	USB interface (device)	Number of channel
		Maximum transfer rate
		Connector shape
	SD memory card interface^*12
	CF card interface
	PC card interface
	Option function board interface
	Memory board interface
	Extension interface
	Side interface
	Sound output interface
Buzzer output
LED specifications	POWER LED
Installation method
Protective structure^*6
External dimensions
Panel cut dimensions
Weight (excluding a fitting)

TFT color LCD

VGA: 640 x 480 dots

211.2 (W) x 158.4 (H) mm
(8.31 (W) x 6.24 (H) inch)

16-dot standard font: 40 characters x 30 lines (two-byte characters)
12-dot standard font: 53 characters x 40 lines (two-byte characters)

65536 colors

32 levels

4096

LED (not replaceable)

Approx. 60000 h (operating ambient temperature: 25°C, display intensity: 50%)

White

Analog resistive film

Minimum 2 x 2 dots^*9 (per key)

Not available^*5 (Only 1 point can be touched.)

1 million touches or more (operating force: 0.98 N or less)

Black

－

Memory for storage (ROM) ^*12 : 32 MB
Memory for operation (RAM) : 80 MB

100000 times

±90 seconds/month (ambient temperature: 25°C)

GT11-50BAT lithium battery

SRAM data, clock data, system status log data

Approx. 5 years (ambient temperature: 25°C)

1 channel

115200, 57600, 38400, 19200, 9600, 4800 bps

D-sub 9-pin (male)

1 channel

115200, 57600, 38400, 19200, 9600, 4800 bps

D-sub 9-pin (female)

－

1 channel

100BASE-TX, 10BASE-T

RJ-45 (modular jack)

－

2 channels (front face, rear face)

High-Speed 480 Mbps

USB-A

1 channel (front face)

High-Speed 480 Mbps

USB Mini-B

1 channel, SDHC compliant (maximum 32 GB)

－

For installing a communication unit or an option unit

For installing a communication unit

－

Single tone (tone and tone length adjustable)

2 colors (blue and orange)

Standard

Front: IP67F^7^10
Inside control panel: IP2X

303 (W) x 218 (H) x 52 (D) mm
(11.93 (W) x 8.58 (H) x 2.05 (D) inch)

289 (W) x 200 (H) mm
(11.38 (W) x 7.87 (H) inch)

2.1 kg
(4.6 lb)

100% Japan/China
Origin

Mitsubishi
Vietnam

Model : GT2510-VTBA
HMI

Manual title	Ver.	Language	Model name Code	Update date
GOT2000 Series User's Manual (Hardware)	AP	English	1D7MJ5	2022/07
GOT2000 Series User's Manual (Utility)	AM	English	1D7MJ6	2022/07
GOT2000 Series User's Manual (Monitor)	AN	English	1D7MJ7	2022/07
GT25 General Description	M	English	1D7MN4	2021/09
GOT2000 Series Connection Manual (Mitsubishi Electric Products) For GT Works3 Version1	AN	English	1D7MJ8	2022/07
GOT2000 Series Connection Manual (Non-Mitsubishi Electric Products 1) For GT Works3 Version1	AJ	English	----	2022/07
GOT2000 Series Connection Manual (Non-Mitsubishi Electric Products 2) For GT Works3 Version1	AK	English	----	2022/07
GOT2000 Series Connection Manual (Microcomputers, MODBUS/Fieldbus Products, Peripherals) For GT Works3 Version1	AK	English	----	2022/07
GOT2000 Series MES Interface Function Manual For GT Works3 Version1	P	English	----	2022/04
GT Designer3 (GOT2000) Screen Design Manual	AP	English	1D7ML9	2022/07
Mobile App Pocket GOT Operating Manual	A	English	----	2022/02
GT Converter2 Version3 Operating Manual for GT Works3	N	English	1D7MB2	2022/04
Graphic Operation Terminal (GOT2000 Series) Basic Training Textbook (for GT Works3)	A	English	1D7MT6	2018/02
