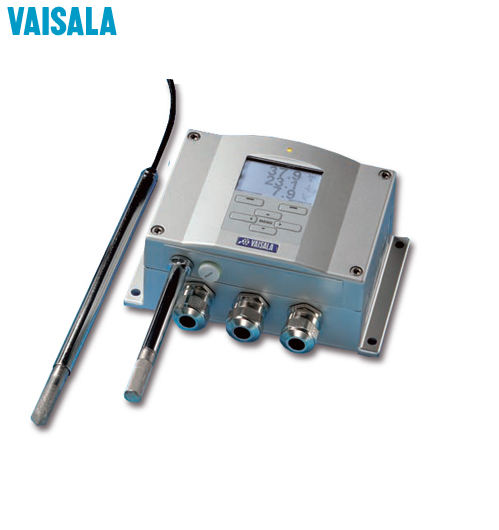

Model: HMT330 7S1D011BXAA100A45CQBAA1/ Humidity and Temperature Transmitter (Cảm biến đo nhiệt độ và độ ẩm)/ E+H

Measurement parameter(s)

Relative humidity
Temperature
Absolute humidity
Dew point temperature
Enthalpy
Mixing ratio
Water vapor pressure
Wet bulb

Measurement range

0 ... 100 % RH
-40 ... +60 °C (-40 ... +140 °F) T

Measurement accuracy

±1.0 % RH (0 ... 90 % RH)
±1.7 % RH (90 ... 100 % RH)
±0.2 °C (±0.36 °F) T

Operating temperature

-40 ... +60 °C (-40 ... +140 °F)

Operating voltage

10 ... 35 VDC, 24 VAC ±20%

Analog outputs

4 ... 20 mA (default setting)
0 ... 20 mA
0 ... 1 V
0 ... 5 V
0 ... 10 V

Digital outputs

RS-232

Housing classification

IP65 (NEMA 4)
