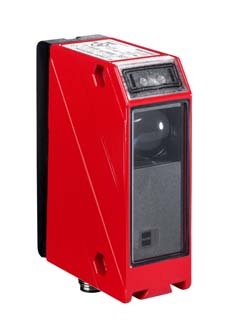

HRTL 96B M/66.01S-S12 - Diffuse sensor with background suppression
Xuất sứ: GERMANY
Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG
Hãng sản xuất: LEUZE VIET NAM
Ứng dụng sản phẩm: Automotive
Mr. Huy-
Basic data
- Series96
- Operating principleDiffuse reflection principle with background suppression
-
Special design
- Special design2 independent switching points, Small light spot (S)
-
Optical data
- Operating range, white 90%0.1 ... 6 m
- Operating range limit, white 90%0.05 ... 6.5 m
- Light sourceLaser, Red
- Laser class2, IEC/EN 60825-1:2007
-
Electrical data
- Protective circuitTransient protection, Polarity reversal protection, Short circuit protected
-
Performance data
- Supply voltage UB10 ... 30 V, DC
- Residual ripple0 ... 15 %, From UB
- Open-circuit current0 ... 50 mA
-
Outputs
- Number of digital switching outputs2 Piece(s)
-
Switching output 1
- Switching elementTransistor, Push-pull
- Switching principleLight switching (PNP)/dark switching (NPN)
-
Switching output 2
- Switching elementTransistor, Push-pull
- Switching principleDark switching (PNP)/light switching (NPN)
-
Timing
- Switching frequency100 Hz
- Response time5 ms
-
Connection
-
Connection 1
- Type of connectionConnector
- FunctionVoltage supply, Signal OUT
- Thread sizeM12
- MaterialMetal
- No. of pins5 -pin
-
-
Mechanical data
- Dimension (W x H x L)30 mm x 90 mm x 70 mm
- Housing materialMetal, Zinc
- Lens cover materialGlass
- Net weight380 g
- Type of fasteningVia optional mounting device, Dovetail grooves, Through-hole mounting
- Compatibility of materialsECOLAB
-
Operation and display
- Operational controlsTeach button
-
Environmental data
- Ambient temperature, operation-40 ... 50 °C
-
Certifications
- Degree of protectionIP 67, IP 69K
- Protection classII
- Certificationsc UL US
- Standards appliedIEC 60947-5-2
-
Classification
- Customs tariff number85365019
- eCl@ss 8.027270904
- eCl@ss 9.027270904
- ETIM 5.0EC002719
- ETIM 6.0EC002719
