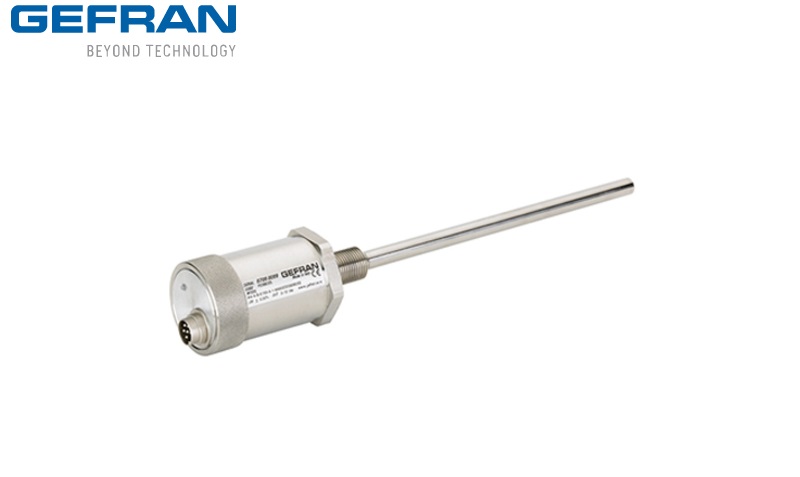

IK4-C Stainless Rod Threat Flange Can Open Digital Output

Nhà cung cấp: ANH NGHI SON

Hãng sản xuất: GEFRAN VIET NAM

Liên hệ tư vấn

Mr. Bảo

bao@ansgroup.asia

0962678764

0962678764

anhnghisonhcm

Overview

The IK4 CANopen integrates a microprocessor to process the measurement and to diagnose the transducer.

The CAN field bus communication system provides fast and safe transmission.

The use of CANopen DS-301 protocol and Device Profile DS-406 provides quick and easy integration of the transducer in the control and automation system.

The IK4 line’s new mechanical structure offers improved features for in-cylinder use, including a series of new multi-connector models, free rotation of the connector head, and replacement of internal electronics without removal of the transducer.

Description

  • Absolute measurement of position and speed
  • Interface CANopen DS-301 V4.01 Device Profile DS-406 V2.0
  • Strokes from 50 to 4000 mm
  • Wide range of connectors for the electrical connection
  • Position resolution up to 2μm
  • Speed resolution up to 0,01mm/sec
  • Rod, nipple, exagonal flange AISI 316
  • Work temperature: -30°…+75°C
  • Resistance to vibrations (DIN IEC68T2/6 12g)
  • Conforms to EC directives (EN 50081-2 50082-1)
