Đại lý Schischek Vietnam,Inmax-30-SF Schischek Vietnam Electrial Rotary actuator,Schischek Vietnam,Inmax-30-SF Schischek ,Electrial Rotary actuator Schischek ,¼-turn actuators

Đại lý Schischek Vietnam,Inmax-30-SF Schischek Vietnam Electrial Rotary actuator

¼-turn actuators , Inmax-30-SF

ExMax, RedMax, InMax cỡ M
90° Bộ truyền động quay một phần tư có/không có hồi lò xo

Thiết bị truyền động quay một phần tư để tự động hóa bộ giảm chấn không khí, bộ giảm chấn lửa và khói, điều khiển VAV, cho van bi, van tiết lưu và các phần ứng 90° khác, trong khu vực nguy hiểm hoặc khu vực an toàn.

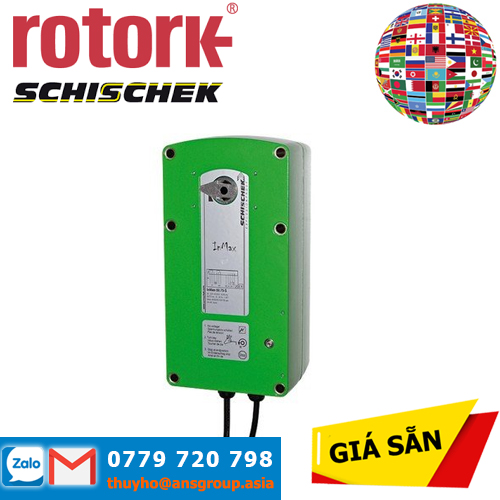

Thiết bị truyền động Schischek InMax-30-SF

Thiết bị truyền động cho van tiết lưu, nắp, van
Phạm vi nhiệt độ hoạt động rộng (máy sưởi tích hợp)
Các phiên bản khác nhau của bộ truyền động và nhiều loại phụ kiện lắp đặt
Mức độ bảo vệ cao - IP 67

THÔNG SỐ

Kiểu	Thiết bị truyền động vòng quay quý
Phạm vi của chuyển động	0…90°
Thời gian chuyển động (động cơ)	120 giây/90°, 150 giây/90°, 40 giây/90°, 60 giây/90°, 90 giây/90°
Mô-men xoắn / Lực lượng	30Nm
Điều khiển	3 vị trí, Bật/Tắt
Nhận xét	2 tiếp điểm phụ
Quyền lực	24…240VAC/DC
mùa xuân trở lại	Đúng
Thời gian chuyển động (mùa xuân)	~20 giây / 90°
Tùy chọn bổ sung	Khả năng thay đổi thời gian di chuyển
Mức độ bảo mật	IP67
giấy chứng nhận	CE

CODE ORDER NHIỀU

100% EU Origin	SCHISCHEK Vietnam	Code: Inmax-30-SF Description: Electrial Rotary actuator
100% EU Origin	SCHISCHEK Vietnam	Code: Inmax-5.10-Y Description: Electrial Rotary actuator
100% EU Origin	SCHISCHEK Vietnam	Code: InMax-5.10-SF Actuator damper
100% EU Origin	Schischek Vietnam	Code: ExPro-CT-50 Description: Ex Temp. sensor for ..Cos-D 40..+80C ; 50mm
100% EU Origin	Schischek Vietnam	Code: ExCos-D Description: Ex Transmitter for ExPro-C.. Sensors
100% EU Origin	Schischek Vietnam	Code: ExPro-CT-50 Description: Ex Temp. sensor for ..Cos-D 40..+80C ; 50mm
100% EU Origin	Schischek Vietnam	Code: ExCos-D Description: Ex Transmitter for ExPro-C.. Sensors
100% EU Origin	SCHISCHEK Vietnam	Code: InMax-30-SF Rotary Actuator Positioner Description: 90° Quarter turn actuators
100% EU Origin	SCHISCHEK Vietnam	Code: InMax-30-SF Description: 90° Quarter turn actuators
100% EU Origin	SCHISCHEK Vietnam	Code: InMax-30-SF Description: 90° Quarter turn actuators
100% EU Origin	SCHISCHEK Vietnam	Code: ExMax-5.10-BF Description: ExMax-5.10-BF 1/4 turn actuator - size S
100% EU Origin	SCHISCHEK Vietnam	Code: InMax-30-SF Description: 90° Quarter turn actuators
100% EU Origin	SCHISCHEK Vietnam	Code: ExMax-5.10-YF Description:1/4 turn actuators
100% EU Origin	SCHISCHEK Vietnam	Code: Inmax-30-SF Description: Electrial Rotary actuator
100% EU Origin	Schischek (Rotork) Vietnam	Code: InMax-30-F Description: quarter turn actuator, 30Nm, spring return
100% EU Origin	Schischek (Rotork) Vietnam	Code: ExMax-30-F Description: Ex quarter turn actuator, 30Nm, spring return, ATEX zone 1, 21, 2, 22
100% EU Origin	Schischek (Rotork) Vietnam	Code: InCos-D-VA Description: Transmitter for InPro-C.. sensors in SS
100% EU Origin	Schischek (Rotork) Vietnam	Code: InPro-CTF-150 Description: Sensor for Cos-D, -40..+125C 0-100%rH ; 150mm
100% EU Origin	Schischek (Rotork) Vietnam	Code: ExCos-D-VA Description: Ex Transmitter for ExPro-C.. sensors in SS, ATEX zone 1, 21, 2, 22
100% EU Origin	Schischek (Rotork) Vietnam	Code: ExPro-CTF-150 Sensor Description: Ex Sens. for Cos-D, -40..+125C 0-100%rH ; 150mm
100% EU Origin	Schischek (Rotork) Vietnam	Code: InCos-P-100-VA Description: Diff. pressure sensor +/-100Pa in SS
100% EU Origin	Schischek (Rotork) Vietnam	Code: InBin-P-500 Sensor Description: Diff. pressure switch 0-500Pa
100% EU Origin	Schischek (Rotork) Vietnam	Code: ExBin-P-500 Sensor Description: Binary Pressure Switch / Ex Diff. pressure switch 0-500Pa, ATEX zone 1, 21, 2, 22
100% EU Origin	Schischek (Rotork) Vietnam	Code: InBox-Y/S-CT Description: Terminal box for InMax-..-Y or -S
100% EU Origin	Schischek (Rotork) Vietnam	Code: ExMax-15.30-S Description : ExMax quarter turn actuators
100% EU Origin	Schischek (Rotork) Vietnam	Code: ExMax-5.10-S ExMax quarter turn actuators
100% EU Origin	Schischek (Rotork) Vietnam	Code: InMax-15-SF Description: Rotary actuator
100% EU Origin	Schischek Vietnam	Code: InMax-5.10-SF Description: Electric rotary actuator / Elektrischer Drehantrieb with emergency function and robust die-cast aluminum housing Size S with spring return Electric rotary actuator with emergency function and robust die-cast aluminum housing. Rated voltage: 24-240VAC/DC Control: open/close, 3-pts Torque: 5 to 15Nm, depending on model Running time: 3/15/30/60/120s, adjustable Spring return: 3/10s, adjustable Ambient temp .: -40...+50°C Angle of rotation: 95° incl. 5° preload Protection class: IP 66 Axle mount: 12x12mm square More functions: Integrated, regulated heating Constant, load-independent runtime position indicator Connection cable 1m, not interchangeable
100% EU Origin	Schischek Vietnam	Code: InMax-15-SF Description: Rotary actuator
100% EU Origin	Schischek (Rotork) Vietnam	Code: InMax-30-SF Description: Rotary Actuator
100% EU Origin	Schischek (Rotork) Vietnam	Code: ExMax-5.10-YF Description: ExMax-5.10-YF ATEX Actuators ExMax
100% EU Origin	Schischek Vietnam	Code: InMax-5.10-SF Description: Actuator
100% EU Origin	Schischek (Rotork) Vietnam	Code: InMax-5.10-SF Description: Electric rotary actuator / Elektrischer Drehantrieb Art no.: 1037038 with emergency function and robust die-cast aluminum housing Size S with spring return Electric rotary actuator with emergency function and robust die-cast aluminum housing. Rated voltage: 24-240VAC/DC Control: open/close, 3-pts Torque: 5 to 15Nm, depending on model Running time: 3/15/30/60/120s, adjustable Spring return: 3/10s, adjustable Ambient temp .: -40...+50°C Angle of rotation: 95° incl. 5° preload Protection class: IP 66 Axle mount: 12x12mm square More functions: Integrated, regulated heating Constant, load-independent runtime position indicator Connection cable 1m, not interchangeable
100% EU Origin	Schischek (Rotork) Vietnam	Code: InMax-30-SF Description: Electric rotary actuator / Elektrischer Drehantrieb Art no.: 1037041
100% EU Origin	Schischek (Rotork) Vietnam	Code: InMax-5.10-YF Description: Rotary actuator / Drehantrieb mit Federrücklauf with spring return, with 3-point control, 0…10 VDC, 4…20 mA, for safe with spring return, with 3-point control, 0…10 VDC, 4…20 mA, for safe
100% EU Origin	Schischek (Rotork) Vietnam	Code: InMax-5.10-SF Description :Electric rotary actuator / Elektrischer Drehantrieb Art no.: 1037038 with emergency function and robust die-cast aluminum housing Size S with spring return Electric rotary actuator with emergency function and robust die-cast aluminum housing. Rated voltage: 24-240VAC/DC Control: open/close, 3-pts Torque: 5 to 15Nm, depending on model Running time: 3/15/30/60/120s, adjustable Spring return: 3/10s, adjustable Ambient temp .: -40...+50°C Angle of rotation: 95° incl. 5° preload Protection class: IP 66 Axle mount: 12x12mm square More functions: Integrated, regulated heating Constant, load-independent runtime position indicator Connection cable 1m, not interchangeable
100% EU Origin	Schischek (Rotork) Vietnam	Code: InMax-5.10-YF Description:Rotary actuator / Drehantrieb mit Federrücklauf with spring return, with 3-point control, 0…10 VDC, 4…20 mA, for safe
100% EU Origin	Schischek (Rotork) Vietnam	Code: InMax-30-SF actuator/Positioner Description: Electric rotary actuator / Elektrischer Drehantrieb Art no.: 1037041
100% EU Origin	Schischek (Rotork) Vietnam	Code: InMax-5.10-YF actuator/Positioner Description: Rotary actuator / Drehantrieb mit Federrücklauf with spring return, with 3-point control, 0…10 VDC, 4…20 mA, for safe
100% EU Origin	Schischek (Rotork) Vietnam	Code: InMax-30-SF actuator/Positioner Description: Electric rotary actuator / Elektrischer Drehantrieb Art no.: 1037041
100% EU Origin	Schischek (Rotork) Vietnam	Code: InMax-5.10-YF actuator/Positioner Description: Rotary actuator / Drehantrieb mit Federrücklauf with spring return, with 3-point control, 0…10 VDC, 4…20 mA, for safe
100% EU Origin	Schischek (Rotork) Vietnam	Code: ExMax-50-SF Description: Rotary actuator with spring return / Drehantrieb mit Federrücklauf and 2 integrated limit switches (5°/85°) for zones 1, 2, 21, 22
100% EU Origin	Schischek (Rotork) Vietnam	Code: ExMax-50-SF Description: Rotary actuator with spring return / Drehantrieb mit Federrücklauf and 2 integrated limit switches (5°/85°) for zones 1, 2, 21, 22
100% EU Origin	Schischek (Rotork) Vietnam	Code: ExCos-D-VA Without accessories Desciption: Ex Transmitter
100% EU Origin	Schischek (Rotork) Vietnam	Code: InMax-30-SF Description: Electric rotary actuator / Elektrischer Drehantrieb Art no.: 1037041
100% EU Origin	Schischek (Rotork) Vietnam	Code: InMax-5.10-YF Description: Rotary actuator / Drehantrieb mit Federrücklauf with spring return, with 3-point control, 0…10 VDC, 4…20 mA, for safe
100% EU Origin	Schischek (Rotork) Vietnam	Code: InMax-30-SF Description: Electric rotary actuator / Elektrischer Drehantrieb Art no.: 1037041
100% EU Origin	Schischek (Rotork) Vietnam	Code: ExMax-15-YF-VAS Description :Actuator No. 090.1250
