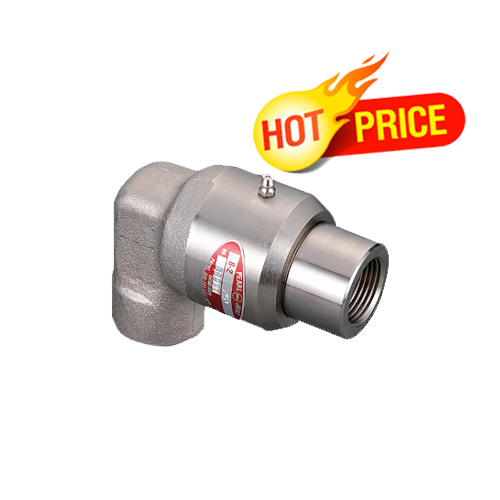

Showa Giken Vietnam,Khớp xoay B-2 15A Showa Giken

KHỚP NỐI QUAY B SERIES SHOWA GIKEN

STANDARD SWIVEL JOINTS B Series







Chi tiết kỹ thuật và thông số các dòng sản phẩm chính hãng khớp nối quay B Series từ nhà sản xuấtShowa Giken xuất xứ Japan

Model:

B-1 10A
B-1 15A
B-1 20A
B-1 25A
B-1 32A
B-1 40A
B-2 10A
B-2 15A
B-2 20A
B-2 25A
B-2 32A
B-2 40A
B-3 10A
B-3 15A
B-3 20A
B-3 25A
B-3 32A
B-3 40A

1. Các Khớp xoay có thể xoay 360 độ.
2. Chúng cần 1 lực bằng tay lớn để vặn
3. Cấu trúc đơn giản.








Áp suất tối đa

13.7MPa

Nhiệt độ tối đa

100 degrees C
(212 degrees F)

Chất liệu

Thép (thép hàn)

Chốt

NBR O-ring

Buck-up Ring

PTFE

Kết nối

Female Taper Thread (Rc)



Origin

Brand

Code

100% Germany Origin

Greisinger (GHM) Vietnam

Model: GMH3331-TFS-GOF
 Humidity, temperature and flow rate measuring device
 Set including device, TFS 0100E, GOF 400 VE, case GKK 3500

100% Korea Origin

Sunil PLS Vietnam

Model: SP300F-800×600-200ST
 Power base

100% Korea Origin

Sunil PLS Vietnam

Model: SP300F-400×800-200ST
 Power base

100% USA Origin

AGR Vietnam

Code: 6510105
 AGR HWC WIRE SET (20 WIRES)

100% USD/Singapore Origin

Nitech/DIXSON Vietnam

MR-45 400/1A CL0.5 5VA CT (ID: 45, OD: 85, HT, 28mm)
 Current Transformers

100% USD/Singapore Origin

Nitech/DIXSON Vietnam

MR-45 300/1A CL0.5 5VA CT (ID: 45, OD: 85, HT, 28mm)
 Current Transformers

100% USD/Singapore Origin

Nitech/DIXSON Vietnam

MR-45 400/1A CL0.5 10VA CT (ID: 45, OD: 88, HT, 29mm)
 Current Transformers

100% Japan Origin

Showa Giken Vietnam

Model: B-2 15A
 Swivel joint

100% EU
 Origin

PMA Vietnam

Code: KS50-114-00090-000 - 0 certificates standard (CE certified)
 Description: Temperature Controller
 KS50-114-00090-Z49 special type, we can't offer , we can only offer below standard type

100% EU
 Origin

PMA Vietnam

Code: KS50-114-00090-U00 U cULus certified
 Description: Temperature Controller
 KS50-114-00090-Z49 special type, we can't offer , we can only offer below standard type

100% EU
 Origin

PMA Vietnam

Code: KS50-114-00090-D00 EN 14597 certified
 Description: Temperature Controller
 KS50-114-00090-Z49 special type, we can't offer , we can only offer below standard type

100% France
 Origin

BEI sensors Vietnam

Code: DHO514-1024-026
 Description: Encoder / Drehgeber
 (DHO5_14//RG59//01024//G3R010//°°DD°°)
 DHO5 - Incremental 58mm - Alu body - Holl.
 shaft - 14mm shaft - 4,75-30Vdc - Push-Pull -
 AA/BB/ 00/ - 0 gated A&B - B before A - 1024 ppr -
 PVC cable - Side - 1 m - 9445/015 DAC

100% USA
 Origin

Allen Bradley
 Vietnam

Model: 2711P-RDT12C
 PanelView Plus

100% Malaysia
 Origin

Allen Bradley
 Vietnam

Model: 1771-OFF2/B
 Module

100% Malaysia
 Origin

Allen Bradley
 Vietnam

Model: 1771-IBN/C
 Module

100% UK Origin

West-cs/ PMA Vietnam

Model: KS50-114-0009E-U00 with conf. KS50-00487
 PMA UNIVERSAL PROCESS CONTROLLER
 (REPLACEMENT for KS50-114-00090-Z49)
 Conf-KS50-00487
 * Dimensions 48x96x118mm
 * Screw terminal connectors
 * Power supply 90-260V AC/48-62Hz
 * 2 relays(changeover)500VA,250V,2A * 1 universal output:
 - continuous 0/4-20mA, 0/2-10V or
 - logic 0/13V or
 - transmitter supply 22mA / >13V
 ----------------------------------
 *Universal input: thermocouples, Pt100, Pt1000, mA, Volt,...
 *1 digital input (contact)
 ----------------------------------
 *BluePort interface for connection of the BlueControl software
 *Maintenance manager and error list
 *Programmer with 4 segments
 *Start-up and boost function
 no option configuration to specification manual english

100% UK Origin

West-cs/ PMA Vietnam

Model: 4012-141-58553
 ACCESSORIES
 - Screw Terminal 15 pol.

100% Korea Origin

Sejin Hydraulics Vietnam

Model: SH-SE-32
 Suction Filter

100% Korea Origin

Sejin Hydraulics Vietnam

Model: SH-SE-24
 Suction Filter

100% USA Origin

Lowflow Valve Vietnam

708-050-S6#/PTT6BLQ4Q4N400R0
 LowFlow Valve Mark 708 control valve, 1/2" size,
 316SS body & trim, NPT end connections, eq.
 percent flow, hard seat, Cv=0.05, 3-15 psi control
 signal, reverse acting

100% Taiwan Origin

Apex dynamic Vietnam

Correct Order Code: AB042-005-S2-P1
 Nameplate code: AB/F042-S2-P1
 Gear Box AB042-005-S2-P1/ KEYENCE SV-M005
 P0401100102
 Báo giá theo S/N. 2712184235

100% USA Origin

Temposonics/MTS Sensor Vietnam

Code :  RH5MA0050M01D701S1052B6-TD01
 Temposonics® R-Series V Rod
 Note: RHM0050MD701S2B6101 is obsoleted
 Recheck delivery time before order

100% USA Origin

Temposonics/MTS Sensor Vietnam

Code đúng:  EP00150MD341A01
 Temposonics® E-Series
 Note: Recheck delivery time before order

100% Germany Origin

Hans-schmidt Vietnam

Model: DTXB-500
 5-500.0 cN with LiPo accumulator
 Roller width: 15mm
 Tension Meters Hand-Held Electronic

100% France Origin

JM Concept Vietnam

Code: JK3000A1
 ANALOGUE PROCESS CONVERTER INPUT
 - Current : 0/20mA ; 4/20mA
 - Voltage : 0/10V ; +/-10V ; 0/100mV
 - Sensor supply 24Vdc, 22mA
 1 OUTPUT
 - Current : 4/20mA ; 0/20mA
 - Voltage : 0/10V
 OTHER CHARACTERISTICS
 - Configurable with switches
 - Settable by with potentiometer on front plate
 - Triple insulation Input/output/supply 2500V
 - Universal auxiliary supply 20Vdc/370Vdc & 80Vac/256Vac.
 - Case 22.5mm width unpluggable from DIN rail wiring base
 Delivered without wiring base.

100% France Origin

JM Concept Vietnam

Code: BL01ALV
 WIRING BASE
 FOR ONE TRANSMITTER 22,5mm

100% EU/ China Origin

Balluff Vietnam

BTL0048
 BTL6-A110-M1000-A1-S115
 Magnetostrictive Sensors

100% EU Origin

Wika Vietnam

Model: 233.30
 Bourdon Tube Pressure Gauges, Safety Pattern
 Series EN 837-1
 Specifications according to data sheet: PM 02.04
 Measuring system: stainless steel
 Case filling: with
 Nominal size: 100 mm
 Measuring range: vacuum- or compound-range
 Scale range: -1...+0.6 bar
 Process connection: G 1/2 B
 Connector location: lower mount
 Window: laminated safety glass
 Pointer: adjustable pointer
 Accuracy class: class 1.0
 Overpressure safe: standard
 Case material: Stainless steel 1.4301
 Case surface: bare
 Material pressure element: Measuring System 316L
 Case filling fluid: glycerine-water-mixture
 Ingress protection: IP 65
 Permissible medium temperature: + 100 °C
 Permissible ambient temperature: -20 … +60 °C

100% EU Origin

Wika Vietnam

Model: 233.50
 Bourdon Tube Pressure Gauges, Stainless Steel
 Specifications according to data sheet: PM 02.02
 Measuring system: stainless steel
 Case filling: with
 Nominal size: 100 mm
 Scale range: 0...60 bar
 Process connection: G 1/2 B
 Connector location: lower mount
 Window: laminated safety glass
 Restrictor: stainless steel, D 0.6
 Pointer: adjustable pointer
 Accuracy class: class 1.0
 Overpressure safe: standard
 Case material: Stainless steel 1.4301
 Case surface: bare
 Material pressure element: Measuring System 316L
 Case filling fluid: glycerine
 Ingress protection: IP 65
 Permissible medium temperature: + 100 °C
 Permissible ambient temperature: -20 … +60 °C

100% China/Korea
 Origin

Qlight
 Vietnam

Model: SED-WS-220-P
 Red, 220V
 Revolving Warning Light and Electric Horn combination

100% USA Origin

(Raytek) Fluke Process Instrument Vietnam

RAYR3IPLUSNBT1ML
 Item No.: 4717308
 Handheld Infrared Thermometer
 1 µm w/ Dual laser (EN60825 Class 2, FDA Class II)
 DS 250:1, 700°C to 3000°C (1292 to 5432°F), USB

100% Korea Origin

Qlight
 Vietnam

Code: SED-WS-220-R
 Warning Light and Electric Horn Combinations

100% EU Origin

E+H Vietnam

Code: FMU41-1NB2A4
 Description: Compact transmitters

100% US/EU
 Origin

Crydom Vietnam

Crydom CWD4850P
 PANEL MOUNT SOLID STATE RELAYS

100% Japan Origin

Shimpo
 Vietnam

Model: DT-361
 High-Intensity LED Stroboscope

100% Japan Origin

Shimpo
 Vietnam

Model: DT-365
 High-Intensity LED Stroboscope

100% USA/China
 Origin

Rosemount
 Vietnam

Model : 8800DF040SA1N1D1E5M5Q4
 Range : ?
 Vortex FLowmeter 8800D
 Note : conf range khi order
