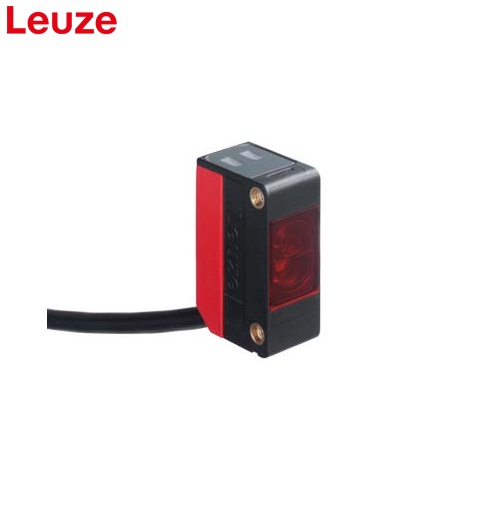

LE5/4P-200-M12 Throughbeam photoelectric sensor receiver Cảm biến quang Leuze
Xuất sứ: Germany
Nhà cung cấp: ANS Đà Nẵng
Hãng sản xuất: LEUZE VIET NAM
Mr. BảoModel: LE5/4P-200-M12 Throughbeam photoelectric sensor receiver Cảm biến quang Leuze
Specifications:
Series: 5
Operating principle: Throughbeam principle
Device type: Receiver
Operating range: 0 ... 10 m
Operating range limit: 0 ... 15 m
Light source: LED, Red
Protective circuit: Polarity reversal protection, Short circuit protected
Supply voltage UB: 10 ... 30 V, DC, Incl. residual ripple
Residual ripple: 0 ... 15 %, From UB
Open-circuit current: 0 ... 15 mA
Number of deactivation inputs: 2 Piece(s)
Function: Voltage supply, Signal OUT
Type of connection: Cable with connector
Cable length: 200 mm
Thread size: M12
Material: Plastic
No. of pins: 4 -pin
