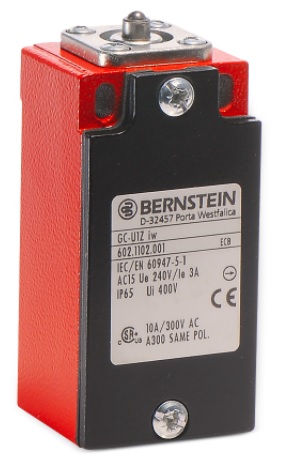

Limit switch Type GC , Bernstein Viet Nam
*
Thanks to its compact design, this metal-enclosed switch is ideally suited for virtually all safety and position monitoring applications.
*
- Protection class IP 65 to VDE 0470 T1
- Enclosure: Aluminium pressure die-casting
- Cover: Sheet aluminium
- Actuator can be repositioned by 4 x 90°
- Cable entry M20 x 1.5
- Connection designation conforming to DIN EN 50013
- Metal actuators for high loads
- Graduated adjustment of AH lever
- Selectable direction-dependent contact-making of AH actuator (basic setting: contact-making both sides)
*
- Slow-action and snap-action contacts
- Versions: 1 NC / 1NO, 2 NC / 2 NO, 2 NC, overlapping contacts
- All NC contacts with
in the circuit diagram are positively opening contacts - Type: Zb (galvanically isolated changeover contact)
- Latching function on request
*
|
Art. No. |
Type |
|---|---|
|
3912030546 |
SBW-E-EINR.GC |
|
3912050523 |
STIW-E-EINR.GC |
|
3912170518 |
RIW-E-EINR.GC ST14 |
|
3912200552 |
HIW-E-EINR.GC KU13 |
|
3912350722 |
AH-E-EINR.GC KU18 |
|
3912360723 |
AV-E-EINR.GC 85/70KU25 |
|
3912370724 |
AD-E-EINR.GC |
|
3912390725 |
AF-E-EINR.GC |
|
3912400510 |
FF-E-EINR.EN |
|
3912410593 |
DR-E-EINR.GC KU18 |
|
6021102001 |
GC-U1Z IW |
|
6021105015 |
GC-U1Z STIW |
|
6021117029 |
GC-U1Z RIW |
|
6021120057 |
GC-U1Z HIW |
|
6021135102 |
GC-U1Z AH |
|
6021136104 |
GC-U1 AV |
|
6021137103 |
GC-U1 AD |
|
6021139106 |
GC-U1 AF |
|
6021140476 |
GC-U1 FF |
|
6021155017 |
GC-SU1Z STIW |
|
6021186118 |
GC-SU1 AV |
|
6021187125 |
GC-SU1 AD |
|
6021189128 |
GC-SU1 AF |
|
6021190100 |
GC-SU1 FF |
|
6021191099 |
GC-SU1Z DR |
|
6021305016 |
GC-UV1Z STIW |
|
6021317030 |
GC-UV1Z RIW |
|
6021320058 |
GC-UV1Z HIW |
|
6021335133 |
GC-UV1Z AH |
|
6021352620 |
GC-SU1Z IW |
|
6021367626 |
GC-SU1Z RIW |
|
6021370629 |
GC-SU1Z HIW |
|
6021385634 |
GC-SU1Z AH |
|
6021802189 |
GC-A2Z IW |
|
6021817172 |
GC-A2Z RIW |
|
6021820157 |
GC-E2 HIW |
|
6021820175 |
GC-A2Z HIW |
|
6021835160 |
GC-E2 AH |
|
6121100622 |
GC-U1U VKS |
|
6121100623 |
GC-U1Z VKW |
|
6121800835 |
GC-A2Z VKW |
|
6121835833 |
GC-A2Z AHS |
---
