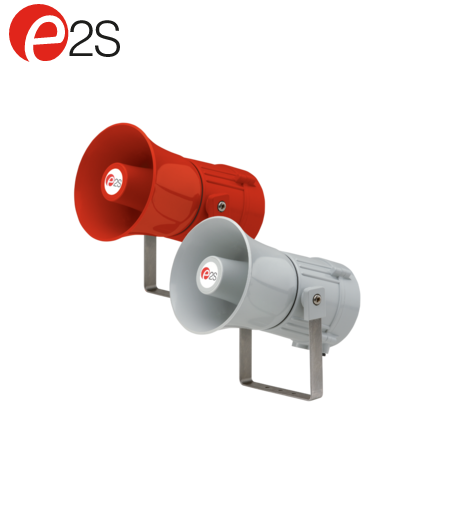

Loa còi (PA Horn Loudspeaker) - E2S

Model: ML15FV100AN2A1R

Specification:

SPL: 108dB +/-3dB @ 1w @ 1m – Pink noise
118dB +/-3dB @ 15w @ 1m
Rated power: 15 Watts RMS
70v line tappings: 15w / 7.5w / 3w / 1w
(z=336.67 Ohms / 653.33 Ohms /
1.6kOhms / 4.9kOhms)
100v line tappings: 15w / 7.5w / 3w / 1w
(z=666.87 Ohms / 1.34kOhms /
3.34kOhms / 10kOhms)
Low impedence: 8 Ohm or 16 Ohm
Dispersion: 120° @ 1kHz & 32° @ 4kHz
Frequency range: 400Hz to 8000 Hz
DC Line monitoring: 2.2uF Capacitor (Transformer version)
470uF Capacitor
(Low impedance version)
Ingress protection: IP66 & IP67 (Third party tested)
UL50E / NEMA250: 4 / 4X / 3R / 13
Housing material: High impact UL94 V0 & 5VA FR ABS
Colour: Grey (RAL7038) or Red (RAL3000)
Cable entries: 2 x M20; 1 x M20 & 1 × 1/2"NPT; 2 × 1/2"NPT
supplied with 1 blanking plug
Terminals: 0.5 to 2.5mm² cables.
Operating temp: -40 to +66°C [-13° to +131°F]
Storage tempe: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 70/100V line: 2.60kg/5.72Ibs
Low impedance: 2.20kg/4.84Ibs
