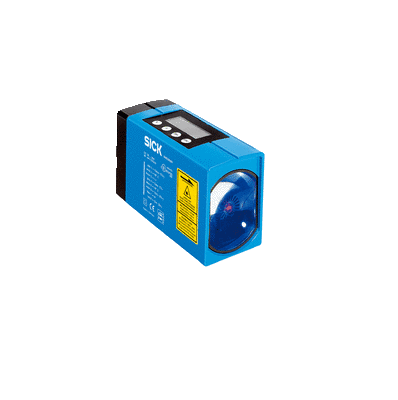

Long range distance sensors
Xuất sứ: Germany
Nhà cung cấp: ANS Việt Nam
Hãng sản xuất: SICK VIET NAM
Mr. BảoCảm biến khoảng cách 1029788 / DME4000-112 SICK
| Supply voltage Vs | DC 18 V … 30 V, limit values |
| Ripple | < 5 Vpp 1) |
| Initialization time | 1.5 s 2) |
| Housing material | Metal (zinc diecast) |
| Window material | Glass |
| Connection type | Male connector, 2 x M12, 5-pin, B-coded, 1 x M16, 8-pin, B-coded |
| Indication | Display |
| Weight | Approx. 1,650 g |
| Current consumption | At 24 V DC < 250 mA |
| Dimensions (W x H x D) | 61 mm x 85 mm x 166 mm |
| Enclosure rating | IP65 |
| Protection class | II 3) |
