Spectrally Flat Class A (secondary standard) pyranometer according to ISO 9060:2018 supplied with shade disk, cartridge with silica-gel crystals, 2 spare sachets, levelling device and Calibration Report.

Đại lý Delta Ohm Vietnam,LPPYRA10 Delta Ohm,Hỏa kế phẳng loại A,Delta Ohm Vietnam

LPPYRA10,Spectrally Flat Class A (secondary standard) pyranometer according

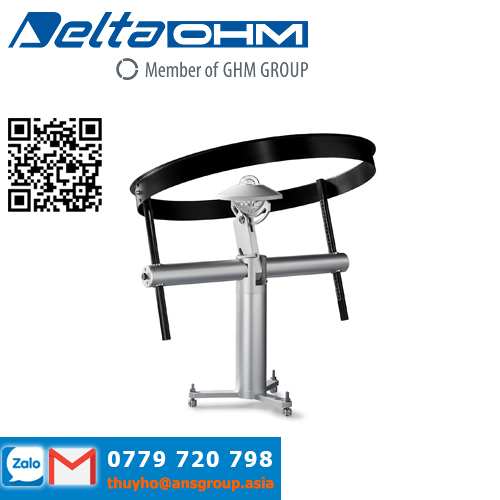

Sê-ri LPPYRA10… – Hỏa kế phẳng loại A

Hỏa kế phẳng loại A (Tiêu chuẩn thứ cấp), thích hợp cho các phép đo tấm pin mặt trời



Hỏa kế LPPYRA10 đo bức xạ trên một bề mặt phẳng (Watt/m²). Dải 0-2000W/m² hoặc 0-4000W/m². Bức xạ đo được là tổng của bức xạ mặt trời trực tiếp và bức xạ khuếch tán (bức xạ toàn cầu).

LPPYRA10 là hỏa kế được phân loại là Phổ phẳng Loại A (Tiêu chuẩn thứ cấp) theo ISO 9060:2018 và theo WMO

Các pyranometers có sẵn trong năm phiên bản:

  • LPPYRA10 –  THỤ ĐỘNG

  • LPPYRA10AC – HOẠT ĐỘNG với đầu ra HIỆN TẠI 4..20 mA. Dải đo: 0…2000 W/m² hoặc 0…4000 W/m² (LPPYRA10AC4).

  • LPPYRA10ACS – đầu ra dòng điện kép 4…20mA và đầu ra nối tiếp RS485 với giao thức MODBUS-RTU. Dải đo: 0…2000 W/m² hoặc 0…4000 W/m² (LPPYRA10ACS4).

  • LPYRA10AV – ACTIVE với đầu ra ĐIỆN ÁP 0..1 V, 0..5 V hoặc 0..10 V. Dải đo: 0…2000 W/m² hoặc 0…4000 W/m² (LPPYRA10AV4).

  • LPPYRA10S  – với đầu ra MODBUS RS485

  • LPPYRA10S12  – với đầu ra SDI-12

Hỏa kế được cung cấp với đĩa màu, hộp chứa tinh thể silica-gel, 2 túi dự phòng, thiết bị cân bằng. Nó cũng được hiệu chuẩn tại nhà máy và cung cấp báo cáo hiệu chuẩn.

Việc hiệu chuẩn được thực hiện theo tiêu chuẩn ISO 9847:1992 (loại IIc): “Hiệu chỉnh hỏa kế trường bằng cách so sánh với hỏa kế tham chiếu”. Hỏa kế được hiệu chuẩn bằng cách so sánh với mẫu tham chiếu được hiệu chuẩn hàng năm tại WRC (Trung tâm Bức xạ Thế giới).

Tải xuống hướng dẫn sử dụng
Thủ công

Tải xuống bảng dữ liệu
Bảng dữliệu













LIST CODE ORDER

100% Italy Origin

Delta Ohm Vietnam

HD2105.1
pHmeter-Thermometer (not include Probe)

100% Italy Origin

Delta Ohm Vietnam

HD2010UC/A.Kit2
HD2010UC/A Class 2 Integrating Sound Level Meter and Analyzer
Including Accessories and carrying case

100% Italy Origin

Delta Ohm Vietnam

DO9765T
 pH or mV Configurable Transmitters

100% Italy Origin

Delta Ohm Vietnam

HD2402
 Multisensor Photo-Radiometer
Includes: DeltaLog13 software downloadable from Delta OHM website.
Supplied with: CH20–ROA hardware key to enable the software, CP24H connecting cable, SWD05 power supply, VTRAP20 tripod, instruction manual, carrying case and compliance report.

100% Italy Origin

Delta Ohm Vietnam

HD2402
 Multisensor Photo-Radiometer
Includes: DeltaLog13 software downloadable from Delta OHM website.
Supplied with: CH20–ROA hardware key to enable the software, CP24H connecting cable, SWD05 power supply, VTRAP20 tripod, instruction manual, carrying case and compliance report.

100% Italy Origin

Delta Ohm Vietnam

HD52.3D147
Multi-Output 2-AXIS Ultrasonic Anemometter

100% Italy Origin

Delta Ohm Vietnam

HD2402
 Multisensor Photo-Radiometer
Includes: DeltaLog13 software downloadable from Delta OHM website.
Supplied with: CH20–ROA hardware key to enable the software, CP24H connecting cable, SWD05 power supply, VTRAP20 tripod, instruction manual, carrying case and compliance report.

100% Italy Origin

Delta Ohm Vietnam

HD2010UC/A.Kit2
HD2010UC/A Class 2 Integrating Sound Level Meter and Analyzer
Including Accessories and carrying case

100% Italy Origin

Delta Ohm Vietnam

HD2010UC/A.Kit2
HD2010UC/A Class 2 Integrating Sound Level Meter and Analyzer
Including Accessories and carrying case

100% Italy Origin

Delta Ohm Vietnam

HD2022
Sound level calibrator, class 2 according to IEC 60942:2003, suitable for ½” and ¼” (1) standard microphones. Does not require any correction for static pressure, humidity and temperature. Calibration frequency 1000 Hz, level 114dB.
ISO 17025 calibration certificate according to IEC 60942 included.
(1) HD2020AD4 adaptor for ¼” microphones not included.

100% Italy Origin

Delta Ohm Vietnam

HD2020AD4
 Adapter for ¼” microphones. Can be used with HD2020 and HD2022 soundcalibrators

100% Italy Origin

Delta Ohm Vietnam

LPPYRA10
Spectrally Flat Class A (secondary standard) pyranometer according to ISO 9060:2018 supplied with shade disk, cartridge with silica-gel crystals, 2 spare sachets, levelling device and Calibration Report.

100% Italy Origin

Delta Ohm Vietnam

HD52.3D
2 Axis Ultrasonic Anemometer (Basic Version)

100% Italy Origin

Delta Ohm Vietnam

HD2402
Multisensor Photo-Radiometer
Includes: DeltaLog13 software downloadable from Delta OHM website.
Supplied with: CH20–ROA hardware key to enable the software, CP24H connecting cable, SWD05 power supply, VTRAP20 tripod, instruction manual, carrying case and compliance report.

100% Italy Origin

Delta Ohm Vietnam

HD2010UC/A.Kit1
HD2010UC/A Class 2 Integrating Sound Level Meter and Analyzer
Includes:
-HD2010UC/A sound level meter class 1 and octave band analyzer.
-UC52/1 pre polarized condenser microphone ½”
-HDSAV windscreen
-HD2010PNE2 preamplifier (HD2010PNE2W with opt. HD2010.OE)
-HD2110USB cable (alternatively, on request, HD2110RS serial cable for
RS232 connection)
-Carrying case
-Rechargeable batteries + SWD10 stabilized mains power supply
-IEC 61672 and IEC 61260 manufacturer conformity declaration

100% Italy Origin

Delta Ohm Vietnam

HD2302.0
Portable luxmeter for measuring illuminance, luminance, PAR, irradiance (across VIS-NIR, UVA, UVB and UVC spectral regions or measurement of irradiance effective according to the UV action curve)

100% Italy Origin

Delta Ohm Vietnam

HD2010UC/A.Kit2
HD2010UC/A Class 2 Integrating Sound Level Meter and Analyzer
Including Accessories and carrying case

100% Italy Origin

Delta Ohm Vietnam

HD2021T.CA
Photometric Radiometric Transmitters

100% Italy Origin

Delta Ohm Vietnam

HD2010UC/A.Kit2
HD2010UC/A Class 2 Integrating Sound Level Meter and Analyzer
Including Accessories and carrying case

100% Italy Origin

Delta Ohm Vietnam

HD2302.0
Portable luxmeter for measuring illuminance, luminance, PAR, irradiance (across VIS-NIR, UVA, UVB and UVC spectral regions or measurement of irradiance effective according to the UV action curve)

100% Italy Origin

Delta Ohm Vietnam

HD988TR1-I
Configurable temperature transmitter with 4...20 mA output
Measuring range -200°C +650°C, minimum range 25°C.

100% Italy Origin

Delta Ohm Vietnam

HD2303.0
Anemometer-Thermometer for air speed measurement

100% Italy Origin

Delta Ohm Vietnam

AP472S1
Vane probe with K type thermocouple

100% Italy Origin

Delta Ohm Vietnam

AP472S2
 Vane probe ∅ 60 mm with handle
ISO 17025 Calibration Certificate is included.

100% Italy Origin

Delta Ohm Vietnam

HD2010UC/A.Kit2
HD2010UC/A Class 2 Integrating Sound Level Meter and Analyzer
Including Accessories and carrying case

100% Italy Origin

Delta Ohm Vietnam

HD2022
Class 2 sound level calibrator according to IEC 60942:2003. Suitable for ½” standard micro-phones. Does not require any correction for static pressure, humidity and temperature. Calibration frequency 1000Hz, sound pressure level 114dB.
ISO 17025 Calibration Certificate is included.

100% Italy Origin

Delta Ohm

HD4807TV
Wall mounting digital active temperature transmitter

100% Italy Origin

Delta Ohm

HD4807TC1.10
Wall mounting digital active temperature transmitter
Output 4-20mA.

100% Italy Origin

Delta Ohm Vietnam

HD2010UC/A.Kit1

100% Italy Origin

Delta Ohm Vietnam

HD2010UC/A.Kit1
Includes:
HD2010UC/A sound level meter class 1 and octave band analyzer,
UC52/1 pre polarized condenser microphone ½”
HDSAV windscreen,
HD2010PNE2 preamplifier (HD2010PNE2W with opt. HD2010.OE)
HD2110USB cable (alternatively, on request, HD2110RS serial cable for RS232 connection),
Carrying case,
IEC 61672 and IEC 61260 manufacturer conformity declaration

100% Italy Origin

Delta Ohm Vietnam

HD2128.1
Thermocouple thermometer for probes type K, J, T, R, N, S, B, E, two inputs.

100% Italy Origin

Delta Ohm Vietnam

HD32.8.8
8 inputs data logger for thermocouples

100% Italy Origin

Delta Ohm Vietnam

TP751
Thermocouple temperature probe

100% Italy Origin

Delta Ohm Vietnam

PW
K thermocouple extension cable. Length 2m, miniature connector

100% Italy Origin

Delta Ohm Vietnam

CP22
Connecting cable USB 2.0 type A connector – type B connector

100% Italy Origin

Delta Ohm Vietnam

BAG32.2
Carrying case for instrument HD32.7 or HD32.8 and its accessories

100% Italy Origin

Delta Ohm Vietnam

SWD10
100-240Vac/12Vdc-1A stabilized mains power supply

100% Italy Origin

Delta Ohm Vietnam

HD52.3D
2-axes ultrasonic static anemometer sensor.

100% Italy Origin

Delta Ohm Vietnam

CP52.10
Connecting cable with 19-pole M23 female connector on one side, open wires on the other side. L = 10 m.

100% Italy Origin

Delta Ohm Vietnam

HD2402
Multisensor Photo-Radiometer

100% Italy Origin

Delta Ohm Vietnam

HD2402
Multisensor Photo-Radiometer
Includes: DeltaLog13 software downloadable from Delta OHM website.
Supplied with: CH20–ROA hardware key to enable the software, CP24H connecting cable, SWD05 power supply, VTRAP20 tripod, instruction manual, carrying case and compliance report.

100% Italy Origin

Delta Ohm Vietnam

HD2010UC.Kit1
Integrating portable sound level meter performing statistical analyses

100% Italy Origin

Delta Ohm Vietnam

HD2010.O2
Advanced Data Logger

100% Italy Origin

Delta Ohm Vietnam

HD2010.SFI
Option IEC61672 Accredia accredited calibration for HD2010UC

100% Italy Origin

Delta Ohm Vietnam

VTRAP
 Tripod with 1550 mm maximum height

100% Italy Origin

Delta Ohm Vietnam

ST5484E-123-0020-00
Seismic Vibration Transmitter

100% Italy Origin

Delta Ohm Vietnam

HD2010UC/A.Kit2
HD2010UC/A Class 2 Integrating Sound Level Meter and Analyzer
Including Accessories and carrying case

100% Italy Origin

Delta Ohm Vietnam

HD2022
Class 2 sound level calibrator according to IEC 60942:2003. Suitable for ½” standard micro-phones. Does not require any correction for static pressure, humidity and temperature. Calibration frequency 1000Hz, sound pressure level 114dB.
ISO 17025 Calibration Certificate is included.

100% Italy Origin

Delta Ohm Vietnam

HD2010UC/A.Kit2
HD2010UC/A Class 2 Integrating Sound Level Meter and Analyzer
Including Accessories and carrying case

100% Italy Origin

Delta Ohm Vietnam

HD2022
Class 2 sound level calibrator according to IEC 60942:2003. Suitable for ½” standard micro-phones. Does not require any correction for static pressure, humidity and temperature. Calibration frequency 1000Hz, sound pressure level 114dB.
ISO 17025 Calibration Certificate is included.

100% Italy Origin

Delta Ohm Vietnam

HD2303.0
Anemometer-Thermometer for air speed measurement

100% Italy Origin

Delta Ohm Vietnam

AP472S1
Vane probe with K type thermocouple

100% Italy Origin

Delta Ohm Vietnam

AP472S2
 Vane probe ∅ 60 mm with handle
ISO 17025 Calibration Certificate is included.
