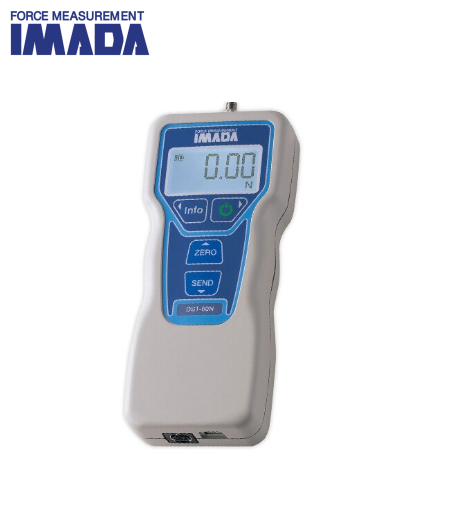

Lực kế (Handheld force gauge) - Hans-Schmidt/ Imada

Model: DST-50N

Specifications:

Model DST
Accuracy ±0.2%F.S 1digit
Unit N(mN,kN) , kg(g), lbf (*1)
Display Signed 4-digit LCD
Sampling rate Max. 1000 data / sec (1000Hz)
Battery Approx.30 hours (when back light is off) Approx. 14 hours (when back light is on) (*needs 4.5 hours for full charge)
Overload Approx. 200%F.S.
Power Nickel-Metal Hydride battery (NiMH battery), USB charge (PC, mobile battery, AC adapter)
Operating environment Temperature:0 – 40℃ Humidity:20 – 80%RH
Function Peak hold(Tensile or compression)/Comparator(OK Judgement)/Sensitivity(3 steps)/Reversible display /Sign inversion/Setting lock/Date & Time/Off timer (Auto power-off)/Reminder for calibration schedule/Overload alarm
Output USB/RS232C
Overload alarm Alarm to notify “near-overload state”: Approx.90%F.S. (Alarm sound) Alarm to notify “overloaded state”: Approx.110%F.S. (Alarm sound/Indication blinking)
Weight Approx.460g (*2)
Dimensions Refer to Dimensions below.
Accessory Force Logger(Data capturing software)/USB cable/ ACAdapter/Attachment(*3)/Carrying case/Instruction manual/Inspection certificate
