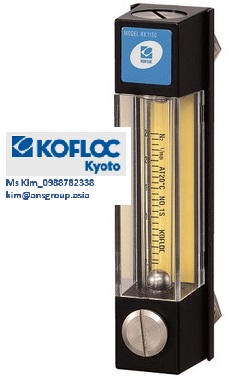

Lưu lượng kế giá thấp_RK1150

Xuất sứ: JAPAN

Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG

Hãng sản xuất: KOFLOC VIET NAM

Ứng dụng sản phẩm: Automotive

Liên hệ tư vấn

Hotline

support@ansgroup.asia

0911472255

anhnghisonhcm

* Đặt điểm nổi bật

•Low price
Rationalized mass production with a resin mold for low cost and quick delivery.
•Easy disassembly/reassembly
Users can easily disassemble the flow meter for cleaning.
•Elegant design
Shapely panel surface without screws and compact design
•Flow meters equipped with a flow control valve are also available.
Flow meters with a simple needle valve or a precision needle valve reduce installation space.
•OEM supply is possible.
The body color, label, and valve shape can be specified for supply on an OEM basis.


 * Thông số

Fluids Exclusively for air and N2
Flow range (FS) RK1150 100ML,200ML,500ML/MIN
5L,10L,25L,30L/MIN
RK1150PV
RK1150V 5L,10L,25L,30L/MIN
Accuracy FS ±10% (Measurement point)
Proof pressure 0.5MPa
Available scale 10:1


Material S BS
Body block Plastic
Tapered tube Pyrex®, glass
Packing FKM NBR
Float Pyrex, SUS316, glass
Protective cover Acrylic resin
Joint SUS304 Brass
Temperature resistance MAX40℃
Connection Rc 1/4 (Standard); Rc 1/8 (Optional)
