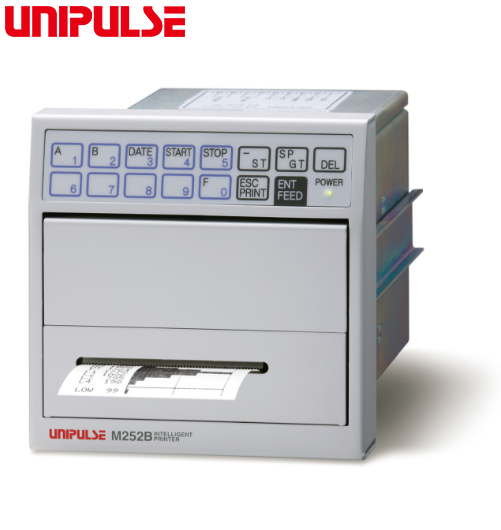

Model: M252B/ Máy in dữ liệu (Printer)/ Unipulse

Printer section

Printing method

5 x 7 dot impact, 24 digits

Printing rate

Approx. 2.5rows/sec (approx. 60cps)

Printing paper

･ Roll paper: Width 57.5±0.5 mm, Winding diameter 60 mm, Total length 30 m, No. of printable rows: Approx. 8000 rows/1 roll
･ Roll paper (duplicate): Width 57.5±0.5 mm, Winding diameter 60 mm, Total length 20 m, No. of printable rows approx. 5900 row/1 roll

Durability

MCBF 1,000,000 rows or more (roll paper: 200 rolls or more)

Setting section

Setting method

Key switches

Setting value storage

･ Setting value: Recorded in NOV-RAM (nonvolatile RAM)
･ Data: SRAM (backup by lithium battery)

Main performance

Printing method

･ Printing by key switches
･ Printing by print command input (PRINT terminal block)
･ Printing by auto print command input (SI/F, RS-232C)
･ Auto printing by cycle setting (1 to 9999 sec) (2 to 9999 sec for displacement diagram printing)

Printout contents

Date, time, weight value, code(6 digits), counts(1 to 9999 times), sub-total(9 digits), total(9 digits), batch total, target value, range, maximum value, minimum value, average, standard deviation, range(maximum value – minimum value), displacement diagram, histogram

Interface (With regard to options, only one function can be installed.)

External input signal

(1)COM, (2)FEED, (3)PRINT, (4)ST, (5)GT

Interface

SI/F: 2-wire type serial interface. This is a serial interface to connect to Unipulse printers and external display units.
BCI: BCD parallel data input interface (Optional)
232: RS-232C communication interface (Optional)

General performance

Power supply voltage

100 to 240V AC (+10%,-15%)

Power consumption

20W

Inrush current

30A, 2 msec: AC100V average load condition (cold start at room temperature)
60A, 2 msec: AC200V average load condition (cold start at room temperature)

Operating conditions

Temperature: Working temperature range 0°C to +40°C; Storage temperature range -20 to +70°C
Humidity: 85% RH or less (non-condensing)

Dimensions

110(W)×110(H)×168(D) mm (protruding parts not included)

Panel cutout dimensions

92(W)×92(H) mm

Weight

Approx. 1.8kg

Attachments

Ink ribbon (1 mounted on main unit)

2

Roll paper

1

AC input cord

1

Mini-driver

1

Roll paper spindle

1

Operation manual

1

BCD input connector (when BCD input option is installed)

1

Model

BCI

BCD parallel data input interface

232

RS-232C communication interface

Model

PP350/10

Roll paper: 10 pcs

PP350-2P/10

Roll paper (duplicate): 10 pcs

PR350/10

Ink ribbon: 10 pcs

PC252B

Roll paper spindle

CAAC2P-B3

AC input cord 3m

CAAC3P-CEE7/7-B2

AC input cord (Voltage resistance: 250V) 2m

CN34

D-Sub 9p connector for RS-232C (inch thread)
