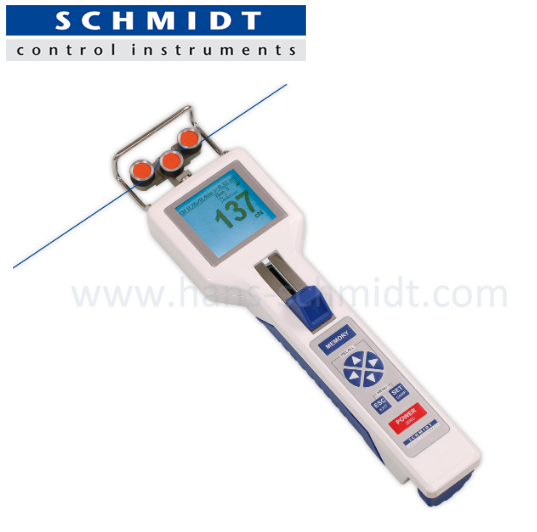

Máy đo lực căng (Tension meter) - Hans Schmidt/ Imada

Model: DTS-200

Specifications:

Calibration: According SCHMIDT factory procedure
Accuracy: For PA from 5 % up to 100 % FS*:
± 0.5 % FS* ± 1 digit
remaining tension range and other calibration materials:
±3 % full scale and ±1 digit
Memory for material curves: 1 for SCHMIDT calibration plus 4 for customized calibrations
Measuring units: Force (switchable): cN, daN, g, kg, N, lb
Thickness (switchable): mm, inch
Overrange: Approx. 10 % FS*, full scale, without accuracy guarantee
Overload protection: 100 % full scale
Measuring principle: Strain gauge bridge
Signal processing: Digital, 16 bit A/D converter
Measuring frequency: Max. 1 kHz (1000 measurings/sec.), intern 8 kHz
Measuring roller deflection: Max. 0.2 mm
Display: Graph LCD
3 different displays: Numeric,
Numeric with graph (time-tension)
X-Y-diagram
Display update rate: Approx. 2 times per second
Memory: MIN, MAX, PEAK, AVG and LAST
Damping: Adjustable electronic damping (averaging)
Cal. Adjustment: ± 10 steps in 1 % increment
Thickness compensation: Max. 2.5 mm (not available for all models)
Auto power off: Approx. 3 minutes of non-use
Temperature coefficient: Gain: less than ± 0.01 % FS* /°C
Zero point: Less than ± 0.03 % FS* /°C
Temperature range: 10 – 45 °C
Air humidity: 85 % RH, max.
Power supply: LiPo accumulator (approx. 40 h continuous use), charging time approx. 3 1/2 h,
USB AC adapter 100 – 240 V AC with 4 adapters (EU/USA/UK/AUS-NZ)
Housing material: Die-cast aluminium
