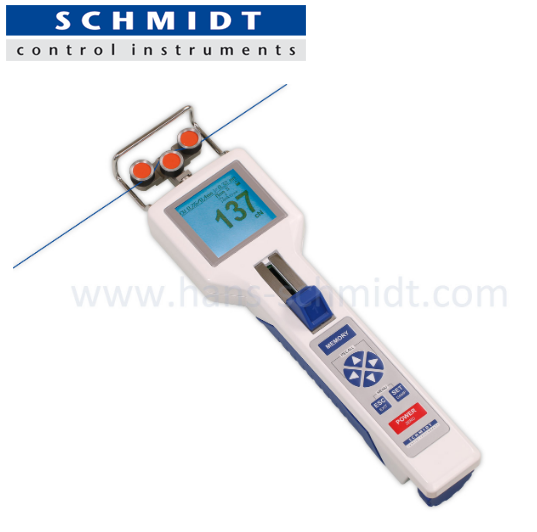

Máy đo lực căng (Tension meter)
Xuất sứ: Germany/ Japan
Nhà cung cấp: ANS Đà Nẵng
Hãng sản xuất: ACCURATE SENSOR
Mr. BảoMáy đo lực căng (Tension meter) - Hans Schmidt/ Imada
Model: DTS-500
Specifications:
| Calibration: | According SCHMIDT factory procedure |
| Accuracy: | For PA from 5 % up to 100 % FS*: ± 0.5 % FS* ± 1 digit remaining tension range and other calibration materials: ±3 % full scale and ±1 digit |
| Memory for material curves: | 1 for SCHMIDT calibration plus 4 for customized calibrations |
| Measuring units: | Force (switchable): cN, daN, g, kg, N, lb Thickness (switchable): mm, inch |
| Overrange: | Approx. 10 % FS*, full scale, without accuracy guarantee |
| Overload protection: | 100 % full scale |
| Measuring principle: | Strain gauge bridge |
| Signal processing: | Digital, 16 bit A/D converter |
| Measuring frequency: | Max. 1 kHz (1000 measurings/sec.), intern 8 kHz |
| Measuring roller deflection: | Max. 0.2 mm |
| Display: | Graph LCD |
| 3 different displays: | Numeric, Numeric with graph (time-tension) X-Y-diagram |
| Display update rate: | Approx. 2 times per second |
| Memory: | MIN, MAX, PEAK, AVG and LAST |
| Damping: | Adjustable electronic damping (averaging) |
| Cal. Adjustment: | ± 10 steps in 1 % increment |
| Thickness compensation: | Max. 2.5 mm (not available for all models) |
| Auto power off: | Approx. 3 minutes of non-use |
| Temperature coefficient: | Gain: less than ± 0.01 % FS* /°C |
| Zero point: | Less than ± 0.03 % FS* /°C |
| Temperature range: | 10 – 45 °C |
| Air humidity: | 85 % RH, max. |
| Power supply: | LiPo accumulator (approx. 40 h continuous use), charging time approx. 3 1/2 h, USB AC adapter 100 – 240 V AC with 4 adapters (EU/USA/UK/AUS-NZ) |
| Housing material: | Die-cast aluminium |
