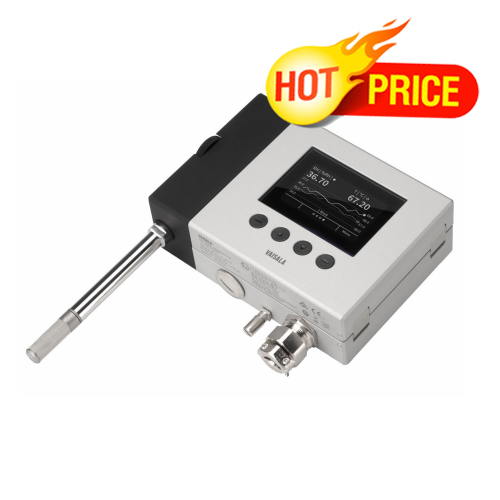

Vaisala Vietnam,Máy phát sóng HMT370EX 11A2NA1AA1NN Vaisala

HMT370EX Series intrinsically safe humidity and temperature transmitters For operation in up to Zone 0 / 20

Đặc trưng
• Đo RH và T và kết quả đầu ra
cũng có nhiệt độ điểm sương, nhiệt độ ướt, tuyệt đối
độ ẩm, tỷ lệ trộn, nước
nồng độ, khối lượng nước
phần nhỏ, áp suất hơi nước,
và enthalpy
• An toàn nội tại (Exi)
• Được thiết kế cho các điều kiện khắc nghiệt
• Phạm vi nhiệt độ giữa
-70… +180 ° C (-94… +356 ° F)
tùy thuộc vào tùy chọn thăm dò
• Tính năng cảm biến Vaisala HUMICAPâ
độ chính xác cao, lâu dài tuyệt vời
ổn định và độ trễ không đáng kể
• Màn hình LCD đồ họa
• Hiệu chuẩn có thể truy nguyên (chứng chỉ
bao gồm)
• Tương thích với Vaisala Insight
Phần mềm PC

Vaisala HMT370EX Series Bộ truyền nhiệt độ và độ ẩm HUMICAPâ là
giải pháp lý tưởng để đo độ ẩm trong các khu vực nguy hiểm. Bản chất an toàn và
máy phát mạnh mẽ hoạt động an toàn và đáng tin cậy ngay cả trong điều kiện nguy hiểm nhất
phân loại, chẳng hạn như Vùng 0. Các máy phát HMT370EX thế hệ tiếp theo có thể
được sử dụng thay thế cho loạt máy phát HMT360 đã hoạt động lâu năm

Interchangeable probes for HMT370EX intrinsically safe humidity and temperature transmitter

HMP371 for wall mounting

Phạm vi nhiệt độ -40… +60 ° C (-40… +140 ° F)
Đường kính đầu dò 12 mm (0,47 in)

HMP373 for confined spaces

Phạm vi nhiệt độ với cáp teflon -40… +120 ° C (-40… +248 ° F)
Phạm vi nhiệt độ với cáp cao su -40… +80 ° C (-40… +176 ° F)
Chiều dài cáp thăm dò 2, 5 hoặc 10 mét (6 ft 7 in, 16 ft 5 in,
32 ft 10 in)
Đường kính đầu dò 12 mm (0,47 in)
Cài đặt
Bộ lắp đặt ống dẫn 210697
Bộ đệm cáp M20x1.5 với con dấu tách HMP247CG
Swagelok cho đầu dò 12mm, 1/2 "NPT
chủ đề
SWG12NPT12

100% Finland Origin

Vaisala Vietnam

DMT152 C1DBY11A400A1X
 Low Dewpoint Transmitter
 Mechanical connection: DMT152 Metal UNF 3/4 -16 Thread
 Measurement parameters: Td/f, ppm
 Analog output Ch1 & Ch2 + RS-485 as standard: 4...20mA
 Ch1: Td Range Td-80...+20C -112...+68F
 Ch2: ppm Free Scale
 Metric Output Units
 Pressure Setting for ppm Calculation: Ambient Pressure 1 bar(a) 14.76 psi(a)
 Sensor Protection: Mesh Filter 18um Stainless Steel
 (Port 1): Shielded Cable, 5.0m, 4-pin M8 Female Straight
 No Cable for RS485 Line and Power Supply (Port 2)
 No Installation Accessories ONLY for ISO 1/2" Thread
 Special Features: Plastic Label 1180, 48+3mm, ZZ-Polyest
 Package: Cardboard Box
 Quick Reference Guide DMT152

100% Finland Origin

Vaisala Vietnam

DMT152 C1DBY11A400A1X
 Low Dewpoint Transmitter
 Mechanical connection: DMT152 Metal UNF 3/4 -16 Thread
 Measurement parameters: Td/f, ppm
 Analog output Ch1 & Ch2 + RS-485 as standard: 4...20mA
 Ch1: Td Range Td-80...+20C -112...+68F
 Ch2: ppm Free Scale
 Metric Output Units
 Pressure Setting for ppm Calculation: Ambient Pressure 1 bar(a) 14.76 psi(a)
 Sensor Protection: Mesh Filter 18um Stainless Steel
 (Port 1): Shielded Cable, 5.0m, 4-pin M8 Female Straight
 No Cable for RS485 Line and Power Supply (Port 2)
 No Installation Accessories ONLY for ISO 1/2" Thread
 Special Features: Plastic Label 1180, 48+3mm, ZZ-Polyest
 Package: Cardboard Box
 Quick Reference Guide DMT152

100% Finland Origin

Vaisala Vietnam

HMT370EX 11A2NA1AA1NN
 HMT370EX Transmitter Unit
 HMP371 Probe for Wall Mounting
 Ex Certification and Region: IECEx (Global)
 Probe Cable Length and Sensor: HMP371 with Fixed Probe, max +60 °C, HUMICAP® R2
 Stainless Steel Sintered Filter (AISI 316L) for general use
 No Probe Accessories
 Transmitter Type: Transmitter without Display and Keypad
 Metric units
 Analog Outputs, CH1: Humidity, 0...100 %RH
 Analog Outputs, CH2: Humidity, 0...100 %RH
 Cable gland M20x1.5, 5…11 mm, 1 pcs
 No Transmitter Accessories
 None Reserved



nland Origin

Vaisala Vietnam

Correct Model:PTU3031B01A1BCPK1A0A1AAB1B0A
Correct: Humidity and Temperature Transmitter PTU3031B01A1BCPK1A0A1AAB1B0A
Pressure range: 500...1100 hPa, Probe cable length : 2 m cable, +80 °C, no additional temperature probe, Graphical display with keypad. Power supply: 10...35 VDC, 24 VAC
Output signal: RS232C + Analog outputs (Ch1 & Ch2, optional Ch3), Cable gland M20*1.5
Pressure fitting: Barbed fitting for 1/8" hose
Humidity sensor: General purpose and high chemical concentrations - HUMICAP180R
Sensor protection: PPS plastic grid & stainless steel netting, spare: DRW010281SP
Probe installation accessories : Duct Installation kit, item 215003
(PTU3031B1A1BCPK1A0A1AB1B0A)





100% Finland Origin

Vaisala Vietnam

Correct Model:PTU3031B01A1BCPK1A0A1AAB1B0A
Correct: Humidity and Temperature Transmitter PTU3031B01A1BCPK1A0A1AAB1B0A
Pressure range: 500...1100 hPa, Probe cable length : 2 m cable, +80 °C, no additional temperature probe, Graphical display with keypad. Power supply: 10...35 VDC, 24 VAC
Output signal: RS232C + Analog outputs (Ch1 & Ch2, optional Ch3), Cable gland M20*1.5
Pressure fitting: Barbed fitting for 1/8" hose
Humidity sensor: General purpose and high chemical concentrations - HUMICAP180R
Sensor protection: PPS plastic grid & stainless steel netting, spare: DRW010281SP
Probe installation accessories : Duct Installation kit, item 215003
(PTU3031B1A1BCPK1A0A1AB1B0A)





100% Finland Origin

Vaisala Vietnam

Moisture and Temperature Transmitter for Oil MMT162-C1DBB0AA60A1X
Transmitter type: Metal housing, NPT 1/2" thread
Analog output + RS-485 as standard: 4...20mA
Sensor protection: Stainless steel grid filter, standard
Cable for analog output and power supply: 2 m (6.6 ft) cable, M8 threaded connector, 90° angle
Package: Cardboard single package
User' s guide: Multilingual quick guide





100% Finland Origin

Vaisala Vietnam

Model: DM70F1B1A4B
Portable dewpoint meter
Indicator type :rechargable with all AC adapters
indicator Accessories: MI70LINK software with RS232 cable (MI70LINK)
Probe type: DMP74B -60…+20°C Td
Pro accessories: sampling cell DSC74
Connection Cable to a Transmitter: no
Carrying Case : soft carrying case (MI70SOFTCASE)

100% Finland Origin

Vaisala Vietnam

Model: 213107SP
10 m extension cable for the MI70 probes







100% Finland Origin

Vaisala Vietnam

Correct Model:PTU3031B01A1BCPK1A0A1AAB1B0A
Correct: Humidity and Temperature Transmitter PTU3031B01A1BCPK1A0A1AAB1B0A
Pressure range: 500...1100 hPa, Probe cable length : 2 m cable, +80 °C, no additional temperature probe, Graphical display with keypad. Power supply: 10...35 VDC, 24 VAC
Output signal: RS232C + Analog outputs (Ch1 & Ch2, optional Ch3), Cable gland M20*1.5
Pressure fitting: Barbed fitting for 1/8" hose
Humidity sensor: General purpose and high chemical concentrations - HUMICAP180R
Sensor protection: PPS plastic grid & stainless steel netting, spare: DRW010281SP
Probe installation accessories : Duct Installation kit, item 215003
(PTU3031B1A1BCPK1A0A1AB1B0A)





100% Finland Origin

Vaisala Vietnam

Correct Model:PTU3031B01A1BCPK1A0A1AAB1B0A
Correct: Humidity and Temperature Transmitter PTU3031B01A1BCPK1A0A1AAB1B0A
Pressure range: 500...1100 hPa, Probe cable length : 2 m cable, +80 °C, no additional temperature probe, Graphical display with keypad. Power supply: 10...35 VDC, 24 VAC
Output signal: RS232C + Analog outputs (Ch1 & Ch2, optional Ch3), Cable gland M20*1.5
Pressure fitting: Barbed fitting for 1/8" hose
Humidity sensor: General purpose and high chemical concentrations - HUMICAP180R
Sensor protection: PPS plastic grid & stainless steel netting, spare: DRW010281SP
Probe installation accessories : Duct Installation kit, item 215003
(PTU3031B1A1BCPK1A0A1AB1B0A)





100% Finland Origin

Vaisala Vietnam

Moisture and Temperature Transmitter for Oil MMT162-C1DBB0AA60A1X
Transmitter type: Metal housing, NPT 1/2" thread
Analog output + RS-485 as standard: 4...20mA
Sensor protection: Stainless steel grid filter, standard
Cable for analog output and power supply: 2 m (6.6 ft) cable, M8 threaded connector, 90° angle
Package: Cardboard single package
User' s guide: Multilingual quick guide





100% Finland Origin

Vaisala Vietnam

Model: DM70F1B1A4B
Portable dewpoint meter
Indicator type :rechargable with all AC adapters
indicator Accessories: MI70LINK software with RS232 cable (MI70LINK)
Probe type: DMP74B -60…+20°C Td
Pro accessories: sampling cell DSC74
Connection Cable to a Transmitter: no
Carrying Case : soft carrying case (MI70SOFTCASE)

100% Finland Origin

Vaisala Vietnam

Model: 213107SP
10 m extension cable for the MI70 probes





100% Finland Origin

Vaisala Vietnam

Correct Code:HMT3307S0A011BBAB120A0AACBAA
(HMT3307S0A01BBAB120A0AACBAA)
Humidity and Temperature Transmitter
Cable length: 2 m cable =) Cuộn tròn được
Parameters: RH+T, Signal output : 4... 20 mA.
Power supply: 10..35 VDC, 24 VAC with galvanic isolation,
Option for module slot 1: RS-485 serial interface (galvanically isolated)
Cable bushings: Cable gland M20 x 1.5
Humidity sensor type: General purpose and high chemical concentrations HUMICAP180R
Sensor protection: PPS plastic grid & stainless steel netting DRW010281SP
Installation kit for probe: Duct installation kit, item: 210697

100% Finland Origin

Vaisala Vietnam

Model: D08A-24TS2





100% Finland Origin

Vaisala Vietnam

Hand-Held Humidity and Temperature Meter with HM42PROBE
Code:
HM42





100% Finland Origin

Vaisala Vietnam

Code: HM40A1AB
HM40 Hand-Held Humidity and Temperature Meter
Probe: Standard probe (directly attached HMP113)
Batteries: Alkaline batteries, Package: Standard
User's guide language: English





100% Finland Origin

Vaisala Vietnam

Moisture and Temperature Transmitter for Oil MMT162-C1DBB0AA60A1X
Transmitter type: Metal housing, NPT 1/2" thread
Analog output + RS-485 as standard: 4...20mA
Sensor protection: Stainless steel grid filter, standard
Cable for analog output and power supply: 2 m (6.6 ft) cable, M8 threaded connector, 90° angle
Package: Cardboard single package
User' s guide: Multilingual quick guide





100% Finland Origin

Vaisala Vietnam

Part No.: HMT360-1A22BCC1A7BA5A10
Humidity and Temperature Transmitter
Parameters: RH+T, Display on transmitter cover
Number of analog output: 2 analog output channels (Ch1 + Ch2)
Interface cable connection: Cable gland M20x1.5 for cable diameters 7.5 ... 12 mm, Ex certification and issuer: TIIS (Japan)





100% Finland Origin

Vaisala Vietnam

Model: DM70F1B1A4B
Portable dewpoint meter
Indicator type :rechargable with all AC adapters
indicator Accessories: MI70LINK software with RS232 cable (MI70LINK)
Probe type: DMP74B -60…+20°C Td
Pro accessories: sampling cell DSC74
Connection Cable to a Transmitter: no
Carrying Case : soft carrying case (MI70SOFTCASE)

100% Finland Origin

Vaisala Vietnam

Model: 213107SP
10 m extension cable for the MI70 probes





100% Germany / Finland Origin

VAISALA Vietnam

Fixed Price Repair for DMT340 Transmitter
Part no.
 DMT340SERV

Note: Sorry but the DRW221587  is not a sales item.  If it is question of a broken transmitter which would need a new probe, you should contact our Service Center  for repair of the instrument
(Probe (5m, +180C) DRW221587)





100% Germany / Finland Origin

VAISALA Vietnam

The Online Store Standard Humidity Calibration 6 points

100% Germany / Finland Origin

VAISALA Vietnam

The Analog output calibration





100% Germany / Finland Origin

VAISALA Vietnam

The Online Store Standard Humidity Calibration 6 points

100% Germany / Finland Origin

VAISALA Vietnam

The Analog output calibration





100% Finland Origin

Vaisala Vietnam

Correct code: HMP110 C15A0C1A0
(HMP110 - C15A0C5A0)
0…5 V
CH1 RH
CH2 T -40…+80’C
Plastic grid with filter
HUMICAP180R sensor
No probe cable

Noted: Order code is C15A0C1A0 if no need cable





100% Finland Origin

Vaisala Vietnam

Vaisala DRYCAP® Dewpoint TransmitterDMT242 - A1A1A2J
DMT242-A1A1A2J

(DMT242)
consist of:
Td Range  -80...+20C Td  4...20mA
No Cable, Connector Only
Pressure setting 1 bar abs
Sensor protection Stainless Steel Sintered Filter (37um)
No PC accessories
Sampling Cell, Swagelok 1/4" Male Connectors, DMT242SC2
Useer’s guide in Japanese
The price includes a traceable calibration certificate for each unit.





100% Germany / Finland Origin

VAISALA Vietnam

Replaced by: HM41
Note: The manufacturing of the HM34C Meter has been terminated . And the model is replaced with a new generation product family HM40, , nearest replacement is the model HM41.
(Code: HM34C)





100% Finland Origin

Vaisala Vietnam

The spare probe
Model:
HMP75





100% Finland Origin

Vaisala Vietnam

Code: HM70 - F4D1A0AB -
consist of :

-MI70 Indicator with rechargeable battery (all AC adapters)
-Probe HMP77 for  RH 0....100 % and temperatures -70....+180 °C  (also other probe models available, please see the datasheet and order form)
-English manual
(Vaisala HM70
1. Màn hình hiển thị MI70 Indicator
SL: 1
2. Dây nối sensor loại Probes: HMP77
SL: 1
3. Sensor : Humicap 180RC (chemical purge, sensor preheat)
SL: 3 )

100% Finland Origin

Vaisala Vietnam

Code: Humicap180RC
Note:
Please note that the unit must always be recalibrated after sensor change.
The price includes a traceable calibration certificate for each unit.



100% Finland Origin

Vaisala Vietnam

Code: HM40 – A1AB

HM40-A1AB





100% Finland Origin

Vaisala Vietnam

The Probe
Model:
HMP77





100% Germany / Finland Origin

VAISALA Vietnam

Correct: DM70-B5B2A0B1 (DM70 - B5B2A0B1)
- Rechargable MI70 Indicator with AC-Adapters
- MI70Link ( pc software + USB cable)
- DMP74B dewpoint probe  Td = -60....+20°C
- DSC74 Sampling cell with quick connect fitting
- carrying case
- English manual
(DM70B5B2A3B1)



100% Finland Origin

Vaisala Vietnam

Model: 19729HM
LiCl Salt Bag 11%RH
(Vaisala 19729HM)

100% Finland Origin

Vaisala Vietnam

Model: 19730HM
MgCl2 Salt Bag 33%RH
(Vaisala 19730HM)

100% Finland Origin

Vaisala Vietnam

Model: 19731HM
NaCl Salt Bag 75%RH
(Vaisala 19731HM)

100% Finland Origin

Vaisala Vietnam

Model: 19732HM
K2SO4 Salt Bag 97%RH
(Vaisala 19732HM)

100% Finland Origin

Vaisala Vietnam

Humicap sensor 180 15578HM
(sensor Humicap 180)

100% Finland Origin

Vaisala Vietnam

Code: Humicap sensor 180 15578HM
The 229010HM is not available with this part number, its spare part code is that 15778HM
(Sensor Intercap 229010HM)



100% Germany / Finland Origin

VAISALA Vietnam

DM70 Hand-Held Dewpoint Meter for Spot-Checking Applications
Code:
DM70 - B5B1A3B1 (DM70 B 5 B 1 A 3 B 1)



Liên hệ & Báo giá chi tiết:

Sale ANS Vietnam:

thuyho@ansgroup.asia

  Trực tiếp FaceBook

 Trực tiếp Zalo: 0783698645

  Snapchat QR



=====================================================

Click xem thêm ứng dụng sản phẩm khác

Đại lý phân phối chính hãng tại Vietnam

Báo giá ngay – Hàng chính hãng – Bảo hành 12 tháng – Tư vấn hỗ trợ kỹ thuật 24/7

Xem thêm sản phẩm hãng Vaisala tại đây

Xem thêm thông tin về thương hiệu khác tại đây

Xem thêm sản phẩm khác tại đây
