Bộ khởi động mềm trung thế - Soft starter cho mô tơ không đồng bộ & mô tơ đồng bộ 3 pha

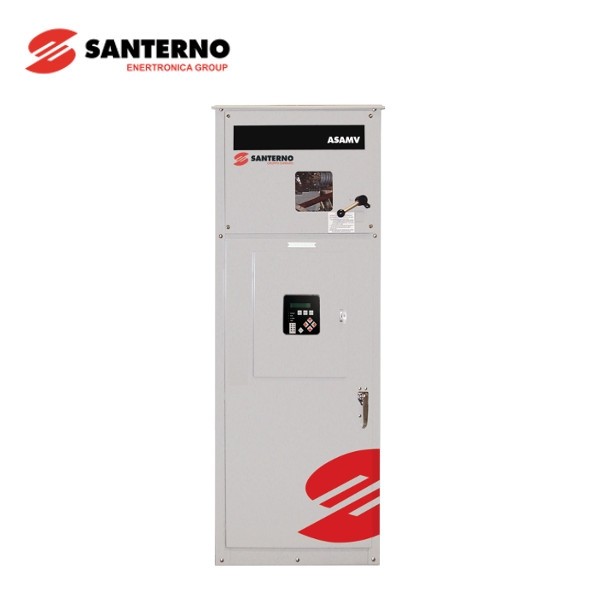

ASAMV

Medium voltage Soft starter for 3- phrase asynchronous Motor & synchronous Motor

Bộ khởi động mềm trung thế - Soft starter  cho mô tơ không đồng bộ & mô tơ đồng bộ 3 pha

2 product versions :

• Version E3 :  IP54, bypass contactor, line contactor

           Range : 200A to 600A (nominal) / Supply voltage : 2300Vac to 7200Vac

• Version E2 :  IP54, bypass contactor, line contactor, fuses, Circuit breaker

            Range: 100A to 1000A (rated current) / Supply voltage : 2300Vac to 13800Vac (15000V on demand)

• SCR Overload :

• up to 125% - continuous
• up to 500 %– 60 seconds
• up to 600%– 30 seconds

• Certificate : CE, RoHS, EAC
• Integrated Communications ports

• RS232 for point to point Communications with a PC
• RS485 for multi-drop Communications with Modbus RTU protocol

• Flexible I/Os :

• 8x relay programmable output
• 2 x programmable analog output ( 0-10Vdc or 4-20mA)

• User interface :  LCD Display, Start-stop-reset-local/ remote, state indicator LED, trip log, counters ( number of starts, hours run,  kWh), measurements ( current, voltage, power factor, kWh), programming of viewable measurements, password protection.
