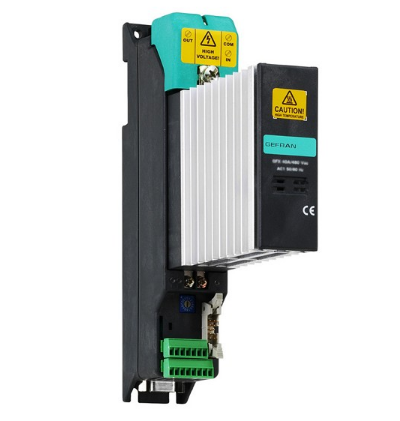

Mô đun điều khiển nguồn GFX-S1-60/480-0-R-00-P-C0 Gefran

Mô đun điều khiển nguồn GFX-S1-60/480-0-R-00-P-C0 Gefran

• GEFLEX Multifunction GFX-S1-60

• Modular Power Controller for Temperature Controlled Zones

• Three versions: MASTER, SLAVE, EXPANSION

• MASTER - independent temperature control and communication unit

• SLAVE - independent temperature control unit

• EXPANSION - for three-phase loads

• SSR (Solid State Relay) zero crossing

• Rated voltage: 480Vac rms, 50-50Hz

• Rated current (AC1): 25A, 40A,

• 60A, 75A, 90A, 120A

• Protection: IP20

• Installation: DIN bar and panel

• Universal temperature input, accuracy 0.2%

• Configurable digital input

• Logic output or “cooling” relay

• Load current detection with integrated CT

• Heat/cool PID, selection of cooling fluid, self-tuning,auto-tuning, soft-start

• 4 generic alarms, LBA and HB alarms

• 2 configurable relay outputs

• Field bus for Master:

• RATED VOLTAGE : 480Vac

• WORK VOLTAGE RANGE : 24...530Vac

• NON-REPETITIVE VOLTAGE : 1200Vp

• SWITCHING VOLTAGE FOR ZERO : ? 20V

• RATED FREQUENCY : 50...60Hz

• POWER FACTOR : ? 0,5

• RATED CURRENT AC1 : 60A

• REPETITIVE OVERCURRENT (t=1s) : ? 100A

• NON-REPETITIVE OVERCURRENT (t=20ms) : ? 1150A

• I2t FOR BLOWOUT (t=1...10ms): ? 6600A2s

• CRITICAL dv/dt WITH OUTPUT DEACTIVATED:1000V/ms

• RATED ISOLATION VOLTAGE IN/OUT:4000V

• WORK TEMPERATURE:0...80°C according to dissipation curves

• Dimension (LxWxH) cm : 19.5 x 8.2 x 22.5 cm

• Protection class:IP20

• Installation:DIN guide or panel

• Notes:MOV protection

• High-speed fuses:FUS-080
