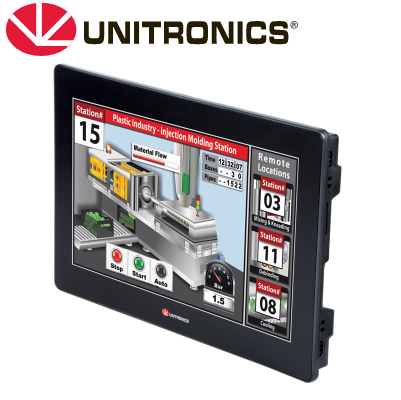

Mr. BảoMàn hình điểu khiển USP-070-B10 Unitronics
Main function:
HMI / Display unit
Product series / family name
UniStream Modular series
Functions
HMI touchscreen panel
UniCloud enabled functionality
Multi-language display
Built-in alarm screens
Multi-level password protection
Media support; PDF viewer; video; audio
UniCloud enabled functionality
Multi-language display
Built-in alarm screens
Multi-level password protection
Media support; PDF viewer; video; audio
Design
longer backlight lifespan (50000 hours)
Supply voltage (DC)
10.2Vdc-28.8Vdc (12Vdc / 24Vdc nom.)
Display
7" 800x480pixels (WVGA) TFT LCD 65k color resistive touchscreen display
Memory capacity
512MB (RAM)
3GB (ROM for system)
1GB (ROM for user)
3GB (ROM for system)
1GB (ROM for user)
Connection type
2 x RJ45 connectors
2 x USB 2.0 ports
1 x Mini-USB 2.0 port
1 x 3.5mm audio-out jack (Line-out)
2 x USB 2.0 ports
1 x Mini-USB 2.0 port
1 x 3.5mm audio-out jack (Line-out)
Communication protocol
Ethernet
Net Height (mm)
150.1 mm
(display) 91.44 mm
(display) 91.44 mm
Net Width (mm)
211.1 mm
(display) 152.4 mm
(display) 152.4 mm
Net Depth (mm)
114.1 mm
Mounting mode
Landscape flush mounting
Degree of protection
IP65
IP66
NEMA 4X
IP66
NEMA 4X
Ambient air temperature for operation
-20...+55 °C
Processing time
0.13μs (bit operation) - 0.00013 ms
Application type
Hazardous Class I
Order code / Manufacturer SKU
USP-070-B10
Manufacturer product status
Commercialized
Compliant with standard(s)
IEC 60068-2-6
IEC 60068-2-27
UL
CE
EAC
IEC 60068-2-27
UL
CE
EAC
Benefits
Including HMI features and built-in webserver
Expansion up to 2048 I/Os
Execute high-end projects on time and within budget
Expansion up to 2048 I/Os
Execute high-end projects on time and within budget
Electrical durability
(Backlight) 50 000 hours
