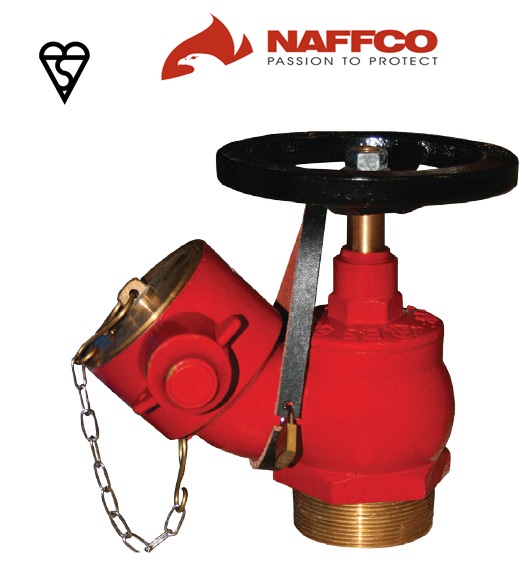

NDR 097 Oblique Landing Valve, Male Threaded Inlet Naffco

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: NAFFCO

Liên hệ tư vấn

Mr. Bảo

bao@ansgroup.asia

0962678764

0962678764

anhnghisonhcm

NDR 097 Oblique Landing Valve, Male Threaded Inlet Naffco Vietnam ANSdanang

Model No. NDR 097
Valve Type Oblique, Threaded Inlet
Pressure Rating Low Pressure Valve
Nominal Size DN 21/2"
Working Pressure 15 Bar Maximum
Test Pressure Valve Seat Test at 16.5 Bar • Body Test at 22.5 Bar
Water Flow Rate 8.5 L/S @ 4 Bar Outlet Pressure
