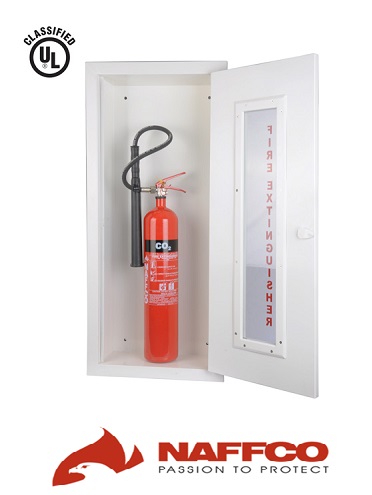

NF/500FRCG ELV Series Fire Extinguisher/Valve Cabinet Naffco
Nhà cung cấp: Anh Nghi Sơn
Hãng sản xuất: NAFFCO
Mr. BảoNF/500FRCG ELV Series Fire Extinguisher/Valve Cabinet Naffco Vietnam ANSdanang
| Model | NF/500FRCG ELV Series | |
|---|---|---|
| Cabinet Material |
1.2mm (Minimum) Complete E.G.Sheet, Red (RAL 3000) Powder Coatedor Any Other Colors in RAL. 1.2mm (Minimum) Stainless steel Facia, Back box E.G.Sheet 1.2mm (Minimum) Complete Stainless Steel 304/316L Brush/Mirror/Titanium Gold Finish |
|
| Type of Cabinet | Recessed Mounting | |
| Fire Rating | F-Rating: 2 Hours T-Rating: 2 Hours |
|
| Maximum Size | Outside | 45.12"(H) X 19.12"(W) X 8.85"(D) 1146mm(H) X 485.5mm(W) X 225mm(D) |
| Inside | 44"(H) X 18"(W) X 8.18"(D) 1117 .5mm(H) X 457mm(W) X 207 .5mm(D) |
|
| Cabinet to Accommodate |
Portable Fire Extinguisher or Landing Valve | |
| Door Type | Fire Rated Glass Door (Optional: Fire Rated Solid Door) | |
| Lock Type | Handle with Cam Latch (Optional: Round lock) | |
| Standard Compliance | Cabinets tested to ASTM E 814 / UL 1479 result in hourly rating of 2 hour for both flame ("F") and temperature transfer ('T'). | |
| Listing | UL Classified | |
Note:
General Tolerance ±0.12” (3mm)
Size can be reduced to accommodate the different equipments as per requirement.
