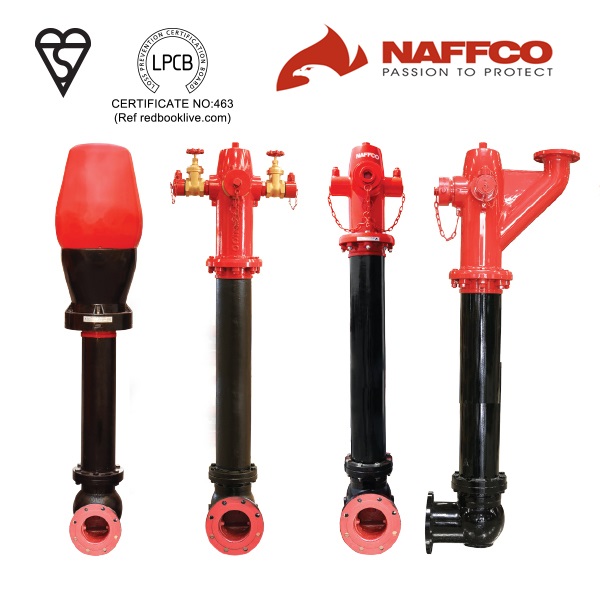

NFHQC Series Dry Type Pillar Fire Hydrants - Kitemark/LPCB Naffco
Nhà cung cấp: Anh Nghi Sơn
Hãng sản xuất: NAFFCO
NFHQC Series Dry Type Pillar Fire Hydrants - Kitemark/LPCB Naffco Vietnam ANSdanang
SL. No. | Model No. | Inlet Flange Size in Inch(DN) |
Dimensions in mm | Working Pressure | |
---|---|---|---|---|---|
A | B | ||||
NHC Series |
|||||
1 | 100 NHC-800 | 4 (100) | 1515 | 530 | 16 |
2 | 100 NHC-1200 | 4 (100) | 1915 | 530 | 16 |
NFHV Series* |
|||||
1 | 100 NFHV-800 | 4 (100) | 1450 | 430 | 16 |
2 | 100 NFHV-1200 | 4 (100) | 1850 | 430 | 16 |
3 | 150 NFHV-800 | 6 (150) | 1500 | 480 | 16 |
4 | 150 NFHV-1200 | 6 (150) | 1900 | 480 | 16 |
NFHQ Series |
|||||
1 | 100 NFHQ-800 | 4 (100) | 1450 | 430 | 16 |
2 | 100 NFHQ-1200 | 4 (100) | 1850 | 430 | 16 |
3 | 150 NFHQ-800 | 6 (150) | 1500 | 480 | 16 |
4 | 150 NFHQ-1200 | 6 (150) | 1900 | 480 | 16 |
NFHQC Series |
|||||
1 | 100 NFHQC-800 | 4 (100) | 1450 | 430 | 16 |
2 | 100 NFHQC-1200 | 4 (100) | 1850 | 430 | 16 |
3 | 150 NFHQC-800 | 6 (150) | 1500 | 480 | 16 |
4 | 150 NFHQC-1200 | 6 (150) | 1900 | 480 | 16 |
NFHQS-CD Series |
|||||
1 | 100 NFHQS-CD 800 | 4 (100) | 1450 | 430 | 16 |
2 | 100 NFHQS-CD 1200 | 4 (100) | 1850 | 430 | 16 |
3 | 150 NFHQS-CD 800 | 6 (150) | 1500 | 480 | 16 |
4 | 150 NFHQS-CD 1200 | 6 (150) | 1900 | 480 | 16 |
NFHQM Series |
|||||
1 | 150 NFHQM-800 | 6 (150) | 1500 | 480 | 16 |
2 | 150 NFHQM-1200 | 6 (150) | 1900 | 480 | 16 |
* for LPCB approved - Hydrant Model NFHV Series with 2 x 2½" straight through landing valve available upon request.
