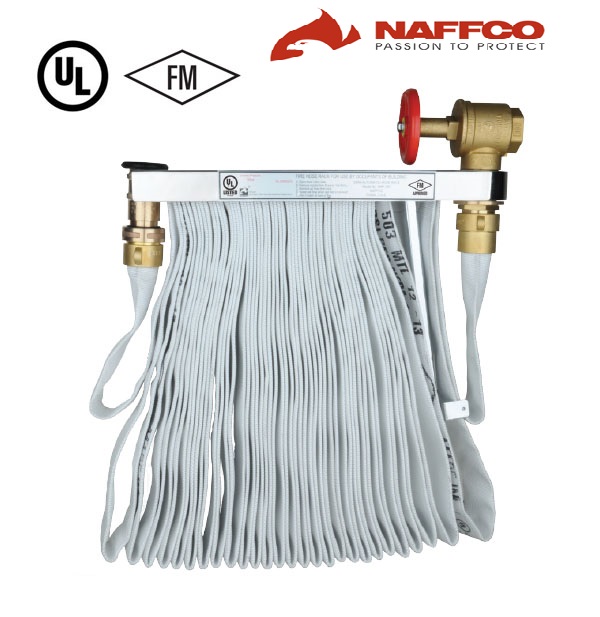

Mr. BảoNHR 38V* Fire Hose Rack Assembly Naffco Vietnam ANSdanang
| Model | NHR 38V* | NHR 64V |
|---|---|---|
| FIRE HOSE | ||
| Fire Hose Type | Single jacket, Light weight Thermoplastic lining with high tenacity filament polyester yarn, UL listed |
Single jacket, Light weight Thermoplastic lining with high tenacity filament polyester yarn, UL listed |
| Size & Color | 1½" x 30Mtr., White | 2½" x 30Mtr., White |
| Service Pressure | 250 PSI | 250 PSI |
| Proof Pressure | 500 PSI | 500 PSI |
| Burst Pressure | 750 PSI | 750 PSI |
| COUPLINGS | ||
| Type | 1-1½" NH Female Threaded Coupling, Brass |
2-½" NH Female Threaded Coupling, Brass |
| ANGLE VALVE | ||
| Working Pressure | 300 PSI | 300 PSI |
| Test Pressure | 600 PSI | 600 PSI |
| NOZZLE | ||
| Inlet Size | 1.5" Female NST Threaded | 2.5" Female NST Threaded |
| Discharge rate (in full spray pattern) |
130±5GPM @ 100PSI | 205±5GPM @ 100PSI |
