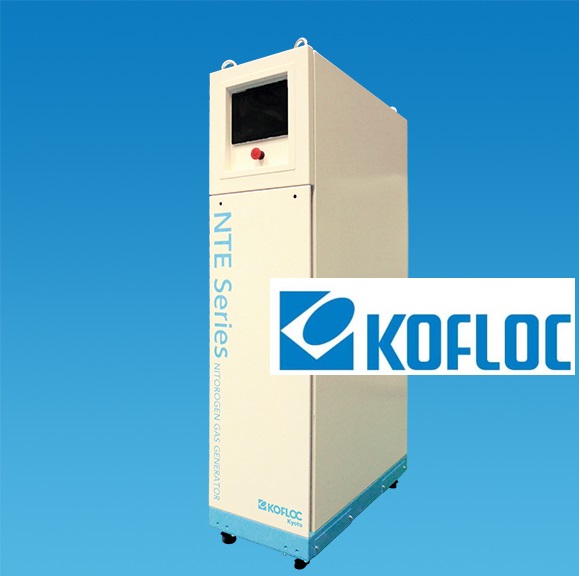

NTE SERIES(2.7Nm3/h-17.2Nm3/h) Máy tạo khí N2 Nito Kofloc
Nhà cung cấp: Anh Nghi Sơn
Hãng sản xuất: KOFLOC VIET NAM
Hotline
anhnghisonhcmMNT SERIES(5.5NL/min-26.0NL/min) Máy tạo khí N2 Nito Kofloc Vietnam ANSdanang
| TYPE | 2.2K | 3.7K | ||||
| 2NTE-2.2 | 3NTE-2.2 | 4NTE-2.2 | 2NTE-3.7 | 3NTE-3.7 | 4NTE-3.7 | |
| Purity ※1 | 99% | 99.9% | 99.99% | 99% | 99.9% | 99.99% |
| Generating volume ※2 | 5.2Nm3/h | 3.7Nm3/h | 2.7Nm3/h | 8.5Nm3/h | 6.1Nm3/h | 4.5Nm3/h |
| Pressure | 0.5MPa | 0.55MPa | 0.5MPa | 0.55MPa | ||
| Dew point | Below'-55℃ | |||||
| Surrounding temperature | 5～35℃ ※5 | |||||
| Surrounding humidity | 10～80%RH | |||||
| Device dimensions | 390mm(W)×840mm(D)×1590mm(H) | |||||
| Device weight | Approx. 230ｋｇ | Approx. 240ｋｇ | ||||
| Sound level ※3 | 58dB（A) | |||||
| Electricity consumption ※4 | 0.3kW | |||||
| Power supply voltage | AC100～240V 1φ 50/60Hz | |||||
| TYPE | 5.5K | 7.5K | ||||
| 2NTE-5.5 | 3NTE-5.5 | 4NTE-5.5 | 2NTE-7.5 | 3NTE-7.5 | 4NTE-7.5 | |
| Purity ※1 | 99% | 99.9% | 99.99% | 99% | 99.9% | 99.99% |
| Generating volume ※2 | 13.2Nm3/h | 9.4Nm3/h | 6.3Nm3/h | 17.2Nm3/h | 13Nm3/h | 9.5Nm3/h |
| Pressure | 0.5MPa | 0.55MPa | 0.5MPa | 0.55MPa | ||
| Dew point | Below'-55℃ | |||||
| Surrounding temperature | 5～35℃ ※5 | |||||
| Surrounding humidity | 10～80%RH | |||||
| Device dimensions | 680mm(W)×1000mm(D)×1675mm(H) | |||||
| Device weight | Approx. 390ｋｇ | Approx. 410ｋｇ | ||||
| Sound level ※3 | 60dB（A) | |||||
| Electricity consumption ※4 | 0.3kW | |||||
| Power supply voltage | AC100～240V 1φ 50/60Hz | |||||
| ※1 N2+Ar levels | ||||||
| ※2 Values obtained under environment conditions of 20℃ surrounding temperature and 60% relative humidity(RH) are converted for atmospheric pressure of 0℃. | ||||||
| The amount of N2 gas that can be produced may decrease due ｔｏ surrounding temperature and humidity. | ||||||
| ※3 Actual measurement values at 1m in front of the device,at 1m above the ground,in a semi-anechoice chamber. | ||||||
| ※4 Energy consumption is the total nominal output of compressor,fan and PSA control part. | ||||||
| ※5 Ｗｈｅｎ intake temperature is high, equipment performance decreases. There is also a danger that this could lead to accelerated maintenance cycle. | ||||||
| Ventilate the room when surronunding temperature is high. | ||||||
| For overseas specifications or special specifications not in our catalogue, please contact relevant staff at our company. | ||||||
| Product improvements may lead to specifications changing without notice. | ||||||
| This equipment does not conform to CE and RoHs directive at the moment. | ||||||
