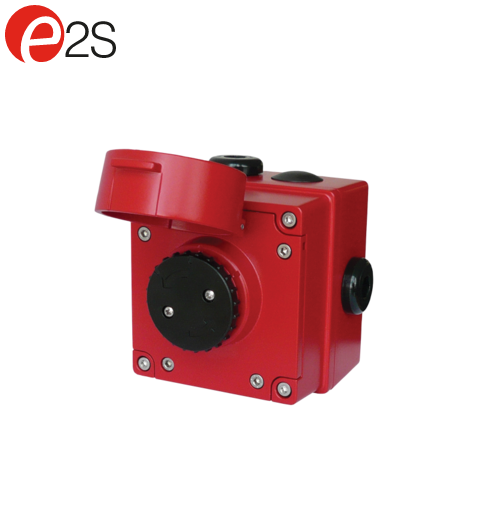

Nút nhấn báo động (Push Button Call Point) - E2S

Model: BExCP3B-PB

Specification:

BExCP3A-PB: II 2G Ex d e IIC T6 Gb
II 2D Ex t IIIC T60°C Db
IP66
BExCP3B-PB: II 2G Ex d e mb IIC T4 Gb
II 2D Ex t IIIC T70°C Db
IP66
Ambient: Ta = -40°C to +55°C [-40° to +131°F]
(+50°C for BExCP3B)
Ingress protection: IP66
Enclosure material: Marine grade copper free LM6 Aluminium
Enclosure finish: Chromated & powder coated finish:anti-corrosion
Colour: RAL3000 Red (others available on request)
Cable entries: 2 x M20 clearance top and
1 x M20 clearance side.
Back box can be rotated to give
2 x bottom and 1 x side entries
Stopping plugs: 2 x Ex e nylon plugs as standard
Brass and stainless steel plugs optional
Terminals: 6 × 4.0mm² cables or or 8 × 2.5mm² DIN rail
