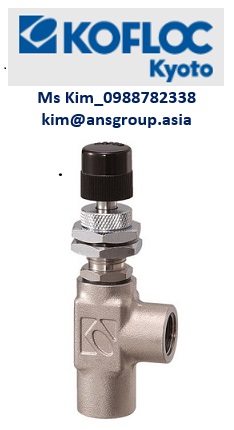

Precision Needle Valve w/Non-rotary Needle MODEL 2412 SERIES

Xuất sứ: JAPAN

Nhà cung cấp: ANS- ANH NGHI SƠN ĐÀ NẴNG

Hãng sản xuất: KOFLOC VIET NAM

Ứng dụng sản phẩm: Automotive

Liên hệ tư vấn

Bích Ngà

bichnga-sales@ansgroup.asia

0937 856 572

* Thông số

Rated flow ranges See the table below
Number of turns of regulating screw Approx. 12 turns
Maximum operating pressure 1.0 MPa
Maximum operating temperature (B) 70℃
(SS) 120℃
Materials of parts in contact with fluids (B) Brass, POM, NBR
(SS) SUS316, fluorocarbon resin, FKM
Fluids Gas and liquid
Connection end Rc 1/4 (standard)
