PTFE/PFA/FEP Lined 45° Bend/Elbow
Product Description
Fluoropolymer lined 45° Bend/Elbow for the most demanding chemical applications to suite ASME Class 150 piping systems. Elbow body is made of Ductile Iron lined with PFA/FEP/PVDF/PTFE.
Dimensions:
| TO SUITE PIPEWORK NB |

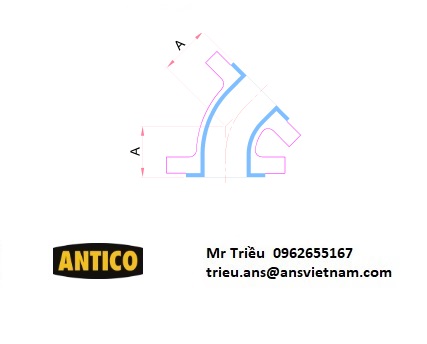

Centre line to Face - A |
Flange Diameter |
Raised Face Diameter |
Steel Thickness |
Liner Thickness |
| inches |
mm |
Inches(mm) |
mm |
mm |
mm |
mm |
| 1" |
25 |
44 |
108 |
51 |
4.5 |
3.3 |
| 11/2" |
40 |
57 |
127 |
73 |
5.0 |
3.3 |
| 2" |
50 |
63 |
152 |
92 |
6.0 |
3.3 |
| 3" |
80 |
76 |
190 |
127 |
6.0 |
3.3 |
| 4" |
100 |
102 |
229 |
157 |
6.5 |
4.5 |
| 6" |
150 |
127 |
279 |
216 |
8.0 |
5.5 |
Specifications:
| Components |
Material |
Material Standard |
| Body Housing |
Spheroidal Grey (Ductile) Iron |
ASTM A395/GG40.3 DIN EN 1563 |
| Lining |
PTFE / PFA / FEP |
ASTM D3307 / ASTM D2116 |
