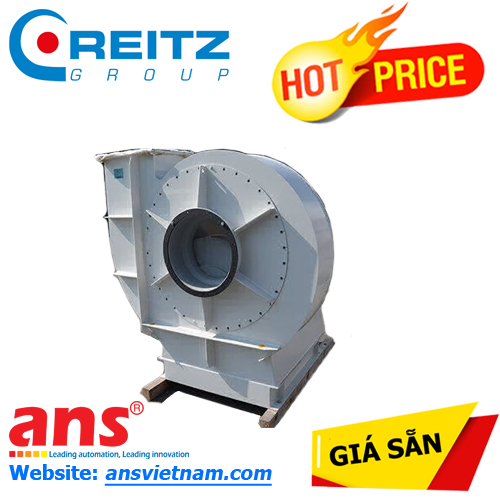

STT	Mô tả	SL
1.	Cánh quạt có trục	1 Set
2.	Vỏ có hình nón	1 Set
3.	Đai chữ V và ròng rọc	1 Set
4.	Ổ trục và vỏ (1 DE & 1 NDE)	1 Sets
5.	Giá đỡ động cơ	1 No.
6.	Bệ và khung	1 Set
7.	Đệm kín	1 No.
8.	Chốt và đệm	1 LOT
9.	Protection guards	1 Set
10.	Bu lông móng	1 LOT
11.	Sơn hoàn chỉnh
12.	Khớp nối tại vị trí đầu vào và đầu ra	1 Set
13.	Bộ cách ly rung (Make: Reitz)	1 Set
14.	Đĩa làm mát	1 No.
15.	Van bướm	1 No.

Đặt tính chung

• Truyền động thông qua dây đai.
• Có khung đế và động cơ bên
• Thiết kế đầu vào đơn
• Thiết kế cánh quạt dựng xiên

Lắp đặt trên nền thấp hoặc khung thép
Có đế
Cánh quạt hướng vào và điều kiển tốc độ đa dạng tiết kiệm năng lượng
