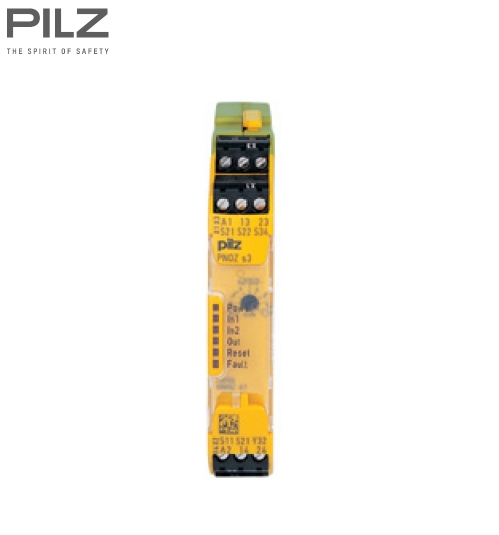

Rơ le an toàn (Safety Relay)_Product no.: 750102

Certifications:

CE, cULus Listed, EAC (Eurasian), TÜV, KOSHA, CCC

Application options:

Instantaneous E-STOP monitoring, Limit switch, Safety gate monitor

Operating modes:

Single-channel, Automatic reset, Manual reset, Monitored manual reset

Product standard:

EN 60947-5-1

Standards:

EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1

Supply voltage (V):

24,0

Supply voltage type:

DC

Terminal style:

Plug-in

Terminal type:

Screw terminal

Number of instantaneous safety contacts:

3

Number of delayed safety contacts:

0

Number of auxiliary contacts:

1

Number of semiconductor outputs:

1

Stop category:

0

Max. current at DC13 I (6 cycles/min):

5.0 A

Max. current at AC15:

5.0 A

Width dimension:

17.5 mm

Height dimension:

98.0 mm

Depth dimension:

120.0 mm

Gross weight:

185 g

Net weight:

175 g

Ambient temperature:

-10 - 55 °C
