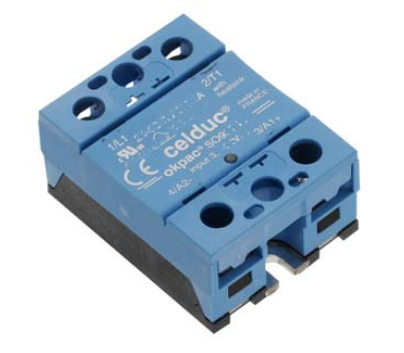

Rờ le kỹ thuật số_SO941460

Single Phase Solid State Relay

All solid state relays fitted with back to back thyristors (power products : single phase, two phase, three phase) now use TMS² technology with a very high life expectancy compared to the majority of products on the market (application note on request).

Celpac®2G - The 22,5mm pitch SSR solution

Performance & reliability:

  • Fixing screws compatible with all hockey puck style relays (celduc SO and SC range),
  • Maximum voltage up to 1600V (690VRMS), 600VAC and 1200VAC as standard,
  • Thyristor rating up to 75A,
  • Large input range : 3-32VDC with regulated current models,
  • AC input control available,
  • Input status yellow LED,
  • Over-voltage protection on input,
  • New generation of TMS² technology for thyristors for a longer life expectancy,
  • Quick and easy connections,
  • Designed according to European standards EN60947-4-3 (IEC947-4-3) and EN60950
  • (VDE0805 reinforced insulation) -IEC62314-UL-cUL,
  • IP20 protection with removable flaps (SU range) or cover (SA range),
  • Other protection devices available as an option : RC snubber, VDR, self turn-on.
