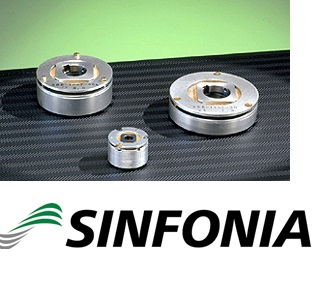

SBR-42-0015EZ Brake Sinfonia

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: ACCURATE SENSOR

Liên hệ tư vấn

Mr. Bảo

bao@ansgroup.asia

0962678764

0962678764

anhnghisonhcm

SBR-42-0015EZ Brake Sinfonia Vietnam ANSdanang

<SBR-42-0015EZ>
Type SBR-42-0015EZ
Static friction torque Nm 1.5
Rated voltage DC-V 24
Power consumption W (at20°C) 7.2
Weight kg 0.3
Unit:mm





Response Characteristics

Type SBR-42-0015EZ
Armature pull-in time　　　　ta (ms) 50
Armature release time　　　　tar (ms) 20



Allowable workload / Max speed / Inertia J

Type SBR-42-0015EZ
Allowable workload (J) Per single time 100
Total workload 4.5×104
Max speed (r/min) 6000
J (kgm2) 2.4×10-6
Number of stops Normal holding (0r/min) 2000000
Emergency braking 200
Heat resistance class H
Initial armature pull-in voltage (at20°C) Less than DC15
Initial armature release voltage (at20°C) More than DC1V
Mounting direction Free
