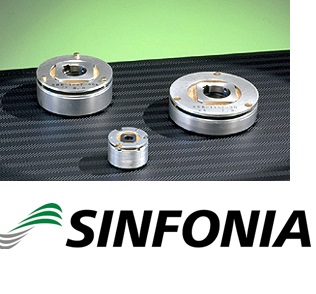

SBS-230 Brake Sinfonia Vietnam ANSdanang

<SBS-230>
Type SBS-230
-4D -8D
Static friction torque Nm 260 500
Rated voltage DC-V 24
Power consumption W(at75°C) 62
Weight kg 30





  1. 2D and 6D types are custom made.
  2. A new clutch and brake may not have the rated torque at first.
Unit:mm
Build-to-order product



Diameter direction
A 230
A1 125
C 230
C1 65
D1 170
Shaft direction
K 13
L 145
P 43
Q 2
R 100
Mounting
CJ P.C.D 200
Screw M12×20
Shaft hole
d 55
b 15
t 60
Power box
DMP-100/24A
