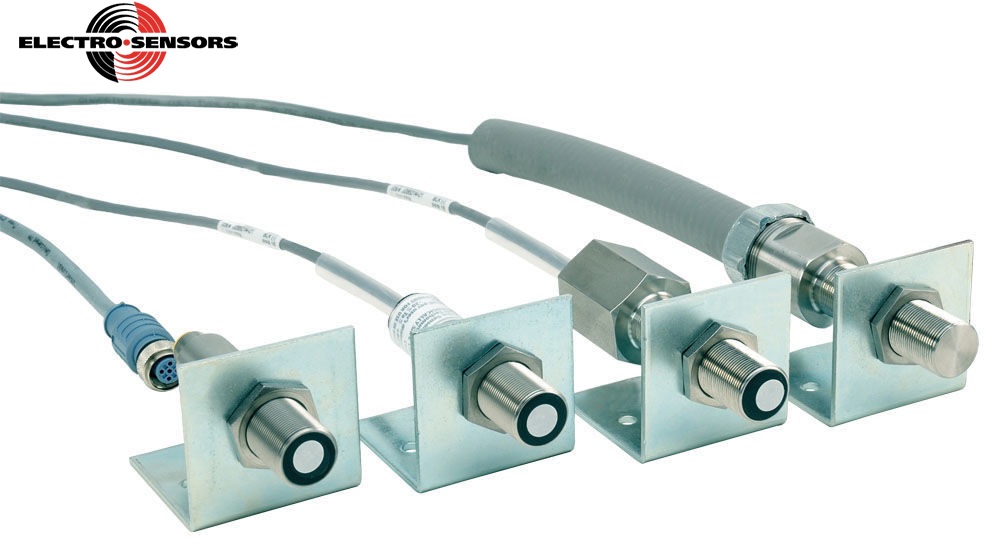

SERIES 18 Shaft Speed Sensor

Nhà cung cấp: ANH NGHI SON

Hãng sản xuất: ELECTRO-SENSORS VIETNAM

Liên hệ tư vấn

Mr. Bảo

bao@ansgroup.asia

0962678764

0962678764

anhnghisonhcm

Features

  • FM Approved Intrinsically Safe (IS) Class I, Div 1, A → D; Class II Div 1 E→G; Class III A Ex / Ex ia II c
  • NEMA 4X, IP 65

Options:

  • Housing
    Basic corded
    M12 Eurofast connector
    ½ NPT female conduit port
    ½ flex liquid-tight conduit fitting
  • Sensing (Hall Effect, Magnetoresistive)
  • Signal (single or quadrature)
  • Output (NPN or PNP)
  • Termination (open-collector or terminated)
  • Cable length
  • Temperature (standard or wide temperature)



Series 18 sensors detect passing magnets of a shaft-mounted pulser disc or wrap and output a voltage pulse frequency directly proportional to the shaft rotation speed. All models work with all Electro-Sensors pulser targets (discs and wraps) and operate down to zero speed. All models have rugged stainless steel M18x1 housings, epoxy-filled and sealed against liquids/dust and come with two stainless steel hex jam nuts and a bracket.

Many housing, sensing, signaling, output, cable length and temperature options are available (see below).

Building a Model Number

Series 18 Build a Model

Examples:

18BHSNO-010:  Basic housing, Hall Effect, single signal, npn, open-collector, 10 ft cable
18EHQPT:  Eurofast housing, Hall Effect, quadrature signal, pnp, terminated
18RMSPO-025-W:  ½ NPT conduit housing, Magnetoresistive, single signal, pnp, open-collector, 25 ft cable, wide-temp.
