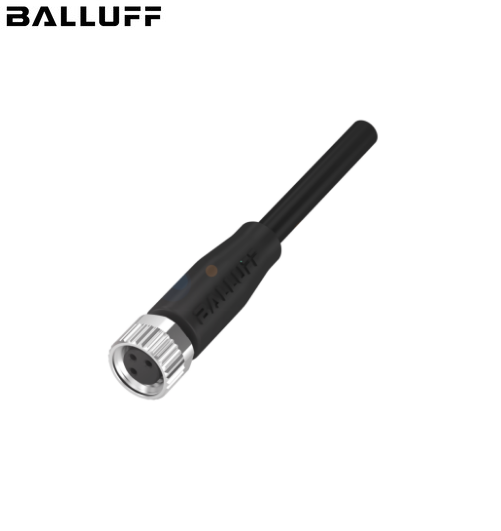

Model: BCC02M8 BCC M313-0000-10-001-PX0334-020 ǀ Single-Ended Cordsets

Connection: M8x1-Female, Straight, 3-pin, A-coded

Cable: PUR black, 2 m, Drag chain compatible

Number of conductors: 3

Conductor cross-section: 0.34 mm²

Cable temperature, fixed routing: -50...90 °C

Cable temperature, flexible routing: -25...90 °C

Operating voltage Ub: 60 VDC / 60 VAC

Rated current (40 °C): 4.0 A

IP rating: IP67, IP69K
