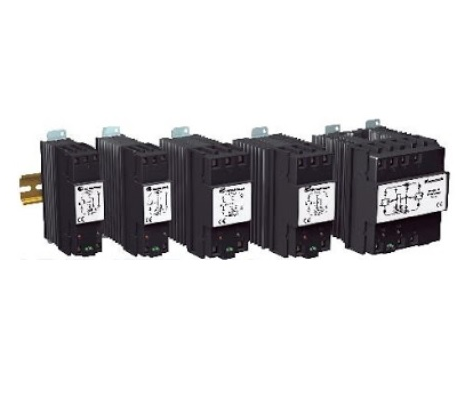

Bộ điểu khiển nhiệt độ ETR060600000 ERO Electronic

Command type: time proportioning.

Rated control voltage: OFF state = 0 to 2V DC; ON state = 4.5 to 35V DC

Input type: Constant current (15mA).

Switching type: zero crossing.

Load type: resistive (min cos Φ =0,9).

Min. holding current: 150mA RMS.

Leakage current: 20mA @ 250V AC.

Min. latching voltage: 20V.

Voltage drop on thyristors: 1,8V.

Insulation: - between power circuit and earth: 2500V RMS for 1 minute. - between command and power circuits: 3500V RMS for 1 minute. - between command and earth: 1800V RMS for 1 minute.

Insulation resistance: > 100MΩ at 500V DC.

Operational temperature: from 0 to 40 °C. (from 32 to 104 °F).

Humidity: from 20% to 85% RH non condensing.

Storage temperature: from -20 to +70°C. (-4 to 158°F)

Protection: IP20.

Approvals: UL and cUL.
