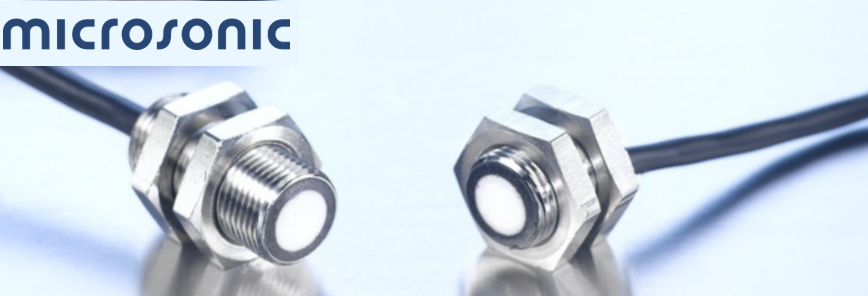

Thiết bị dò tờ cảm biến đôi_dbk+4 double sheet detector_Model: dbk+4/M12/3BEE/M18 E+S

Xuất sứ: Germany

Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG

Hãng sản xuất: MICROSONIC

Ứng dụng sản phẩm: Automotive, Steel, Textile

Liên hệ tư vấn

Mr. Bảo

bao@ansgroup.asia

0962678764

0962678764

anhnghisonhcm

*** Hàng sẵn kho, có thể ship ngay. Giá cực tốt.!!!

Vui lòng liên hệ theo Email 📧 kim@ansgroup.asia  ☎ 0988 782 338 để nhận giá hỗ trợ đơn hàng.

working rangepapers with weights of 20 - 600 g/m2, Washi, metal-laminated sheets and films up to 0.2 mm thick, self-adhesive films
designcylindrical M12 with a swapped-out ultrasonic transducer
operating modedouble sheet control
particularitiesAbstand zwischen Sender und Empfänger wählbar
ausgelagerter Ultraschallwandler
M12
Kabelanschluss
means of measurementpulse operation with amplitude evaluation
transducer frequency500 kHz
blind zone5 mm in front of transmitter and receiver
operating voltage UB9 - 30 V d.c., reverse polarity protection
voltage ripple± 10 %
no-load current consumption≤ 50 mA
type of connection2 m PUR cable, 7 x 0.25 mm2
transmitter cableam Empfänger: 1,2 m PUR-Kabel, am Sender: 1 m PUR-Kabel, mit M8 Rundsteckverbinder; zum ausgelagerten Empfangswandler: 1,2 m PVC-Kabel
