• Measuring range: 10 / 20 / 30 mm/s rms; Further measuring range can be chosen(optional)

• Temperature range: 0 to 80 °C

• Frequency range: 10 to 1000 Hz

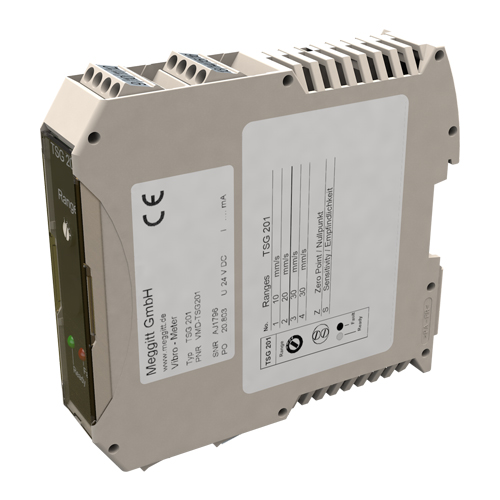

The TSGxxx one-channel transmitter measures the vibration velocity with the assistance of piezoelectric accelerometers.

• Measuring range: 10 / 20 / 30 mm/s rms; Further measuring range can be chosen(optional)

• Temperature range: 0 to 80 °C

• Frequency range: 10 to 1000 Hz
