Thru-beam sensor KS11/KSE11/59/98a/102 P+F Vietj Nam Anh Nghi Sơn
Nhà cung cấp: Anh Nghi Sơn
Hãng sản xuất: PEPPERL + FUCHS VIET NAM
Mr. Bảo| Product Description | ||
|---|---|---|

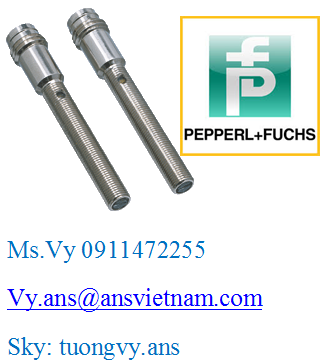

| Thru-beam sensor, M5 threaded housing design, stainless steel housing, detection range 250 mm, infrared light, dark on, DC version, NPN output, M8 plug | ||
| General specifications | ||
|---|---|---|
| Effective detection range | 0 ... 250 mm | |
| Light source | LED | |
| Light type | modulated infrared light | |
| Indicators/operating means | ||
| Function indicator | switching state, LED yellow | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| Output | ||
| Switching type | dark on | |
| Signal output | 1 switch output NPN | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Product standard | EN 60947-5-2:2007 IEC 60947-5-2:2007 |
|
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | M8 x 1 connector, 3-pin | |
| Material | ||
| Housing | Stainless steel 1.4305 / AISI 303 | |
| Optical face | Scratch resistant mineral glass lens | |
