Ứng dụng

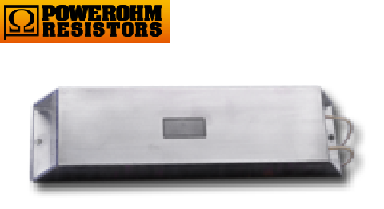

Powerohm's Type CR Case Resistors are most commonly used for light-duty braking of variable frequency drives, heating and any other low wattage load applications.

Dimensional Information (Inches)

Length

6

9

6

7.5

9

12

15

Width

1.5

1.5

3

3

3

3

3

Depth

0.75

0.75

1.5

1.5

1.5

1.5

1.5

Electrical Ratings

Watts

100

150

200

250

300

400

500

Ohms

Part Number

Part Number

Part Number

Part Number

Part Number

Part Number

Part Number

5
10
15
20
25
50
75
100
125
150
200
250
500
750
1000
1500
2000
CR100-5






CR100-10
CR150-10
CR200-10
CR250-10
CR300-10


CR100-15
CR150-15
CR200-15
CR250-15
CR300-15
CR400-15
CR500-15
CR100-20
CR150-20
CR200-20
CR250-20
CR300-20
CR400-20
CR500-20
CR100-25
CR150-25
CR200-25
CR250-25
CR300-25
CR400-25
CR500-25
CR100-50
CR150-50
CR200-50
CR250-50
CR300-50
CR400-50
CR500-50
CR100-75
CR150-75
CR200-75
CR250-75
CR300-75
CR400-75
CR500-75
CR100-100
CR150-100
CR200-100
CR250-100
CR300-100
CR400-100
CR500-100
CR100-125
CR150-125
CR200-125
CR250-125
CR300-125
CR400-125
CR500-125
CR100-150
CR150-150
CR200-150
CR250-150
CR300-150
CR400-150
CR500-150
CR100-200
CR150-200
CR200-200
CR250-200
CR300-200
CR400-200
CR500-200
CR100-250
CR150-250
CR200-250
CR250-250
CR300-250
CR400-250
CR500-250
CR100-500
CR150-500
CR200-500
CR250-500
CR300-500
CR400-500
CR500-500

CR150-750
CR200-750
CR250-750
CR300-750
CR400-750
CR500-750


CR200-1000
CR250-1000
CR300-1000
CR400-1000
CR500-1000




CR300-1500
CR400-1500
CR500-1500





CR400-2000
CR500-2000
