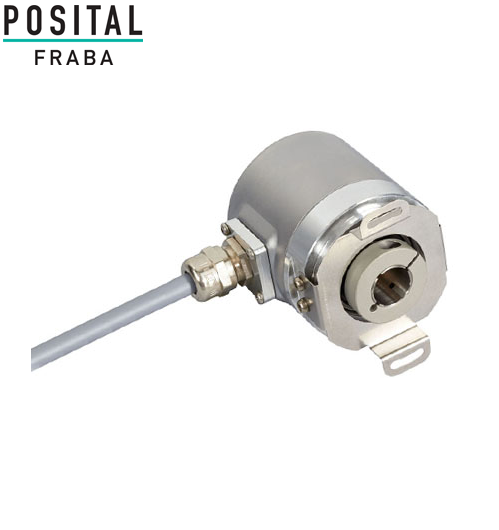

Model: UCD-IPH00-XXXXX-HBS0-5RW/ Bộ mã hóa vòng quay (IXARC Incremental Encoder)/ Posital Fraba

Interface

Interface

Programmable Incremental

Programming Functions

PPR (1-16384), Output, Counting Direction

Configuration Tool

UBIFAST Configuration Tool (Version ≥ 1.6.3)

Outputs

Output Driver

Push-Pull (HTL)

Output Voltage High Level Push-Pull (HTL)

> 4 V @ 4.75-9 V Supply Voltage
> V-3 V @ 9-30 V Supply Voltage

Output Voltage Low Level Push-Pull (HTL)

< 0.5 V

Output Voltage High Level RS422 (TTL)

> 4 V

Output Voltage Low Level RS422 (TTL)

< 0.5 V

Maximum Frequency Response

1 MHz

Maximum Switching Current

50 mA per Channel

Electrical Data

Supply Voltage

4.75 – 30 VDC

Current Consumption

≤140mA @ 5V DC, ≤70mA @ 10V DC, ≤40mA @ 24V DC

Power Consumption

≤ 1.0 W

Start-Up Time

< 1 s

Min. Load Resistance

120 Ω

Reverse Polarity Protection

Yes

Short Circuit Protection

Yes

EMC: Emitted Interference

DIN EN 61000-6-4

EMC: Noise Immunity

DIN EN 61000-6-2

MTTF

280 years @ 40 °C

Sensor

Technology

Magnetic

Accuracy (INL)

±0.0878° (≤ 12 bit)

Duty Cycle

180° ± 27° (Speed > 100RPM)

Phase Angle

90° ± 14° (Speed > 100RPM)

Environmental Specifications

Protection Class (Shaft)

IP65

Protection Class (Housing)

IP66/IP67

Operating Temperature

-30 °C fixed (-22 °F), -5 °C flexible (+23 °F) - +80 °C (+176 °F)

Humidity

98% RH, no condensation

Mechanical Data

Mechanical Data

Housing Material

Steel

Housing Coating

Wet coating (RAL 9006 White Aluminium) + Cathodic corrosion protection (>720 h salt spay resistance)

Flange Type

Blind Hollow, ø 58 mm (H)

Flange Material

Aluminum

Shaft Type

Blind Hollow, Depth = 28 mm

Shaft Diameter

ø 11 mm (0.43")

Shaft Material

Stainless Steel V2A (1.4305, 303)

Rotor Inertia

≤ 30 gcm² [≤ 0.17 oz-in²]

Friction Torque

≤ 3 Ncm @ 20 °C (4.2 oz-in @ 68 °F)

Max. Permissible Mechanical Speed

≤ 12000 1/min

Shock Resistance

≤ 100 g (half sine 6 ms, EN 60068-2-27)

Permanent Shock Resistance

≤ 10 g (half sine 16 ms, EN 60068-2-29)

Vibration Resistance

≤ 10 g (10 Hz – 1000 Hz, EN 60068-2-6)

Length

71,2 mm (2.80")

Weight

920 g (2.03 lb)

Maximum Axial / Radial Misalignment

Static ± 0.3 mm /± 0.5 mm; Dynamic ± 0.1 mm /± 0.2 mm

Electrical Connection

Connection Orientation

Radial

Cable Length

5 m [197"]

Wire Cross Section

0.14 mm² / AWG 26

Material / Type

PVC

Cable Diameter

6 mm (0.24 in)

Minimum Bend Radius

46 mm (1.81") fixed, 61 mm (2.4") flexing

Certification

Approval

CE

Product Life Cycle

Product Life Cycle

Established

Connection Plan

SIGNAL

CABLE COLOR

A

Green

/A

Yellow

B

Gray

/B

Pink

Z

Blue

/Z

Red

Power Supply

Brown

GND

White

Shielding

Shield
