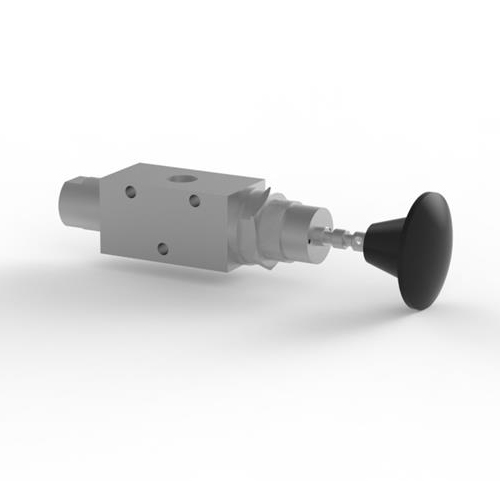

Van cơ khí BXS-04-04-M1-32-NU-00-V Bifold

Nhà cung cấp: ANS VIET NAM

Hãng sản xuất: Bifold

Ứng dụng sản phẩm: Automotive

Liên hệ tư vấn

Admin

trang.ans@ansvietnam.com

+84 908 016 350

0968.86641

anhnghisonhcm

Đại lý Bifold tại Vietnam,Van cơ khí BXS-04-04-M1-32-NU-00-V Bifold

Van cơ khí/ Pilot & Mechanical

Được sản xuất từ thép không gỉ 316L theo tiêu chuẩn và có tùy chọn nguyên liệu nhôm. Dòng van phù hợp với ứng dụng ngoài khơi và các môi trường ăn mòn khác.

Mã sản phẩm:

  • BXS-04-04-M1-32-NU-00-V  Van cơ khí/ Mechanical Valve

Van cơ khí/ Mechanical Valve, 316 Stainless Steel, 1/4 NPT, Push Button to Operate, 3 Way 2 Position, Normally Universal, Spring Return, Cv 0.73.

  • BXS-04-04-M13-32-NU-00-V  Van cơ khí/ Mechanical Valve

Van cơ khí/ Mechanical Valve, 316 Stainless Steel, 1/4 NPT, Roller CAM Ball to Operate, 3 Way 2 Position, Normally Universal, Spring Return, Cv 0.73.

  •  BXS-04-04-M2-32-NU-00-V  Van cơ khí/ Mechanical Valve

Van cơ khí/ Mechanical Valve, 316 Stainless Steel, 1/4 NPT, Shrouded Push Button to Operate, 3 Way 2 Position, Normally Universal, Spring Return, Cv 0.73.

  •   BXS-04-04-M3-32-NU-04-V Van cơ khí/ Mechanical Valve

Van cơ khí/ Mechanical Valve, 316 Stainless Steel, 1/4 NPT, Push/Pull Button to Operate, 3 Way 2 Position, Normally Universal, Cv 0.73.

  • BXS-04-04-M3-32-NU-05-V  Van cơ khí/ Mechanical Valve

Van cơ khí/ Mechanical Valve, 316 Stainless Steel, 1/4 NPT, Push/Pull Button to Operate, 3 Way 2 Position, Normally Universal, Detented, Cv 0.73.

  •  BXS-04-04-M9-32-NU-04-V  Van cơ khí/ Mechanical Valve

Van cơ khí/ Mechanical Valve, 316 Stainless Steel, 1/4 NPT, Padlockable Push/Pull Button to Operate, 3 Way 2 Position, Normally Universal, Cv 0.73.

  •  BXS-04-04-P1-32-NU-00-V  Van điều hướng/ Pilot Valve

Pilot Valve, 316 Stainless Steel, 1/4 NPT, Pilot Operated, 3 Way 2 Position, Normally Universal, Spring Return, Cv 0.73.

  •  BXS-04-04-P1-32-NU-00-V-K54  Van điều hướng/ Pilot Valve

Pilot Valve, 316 Stainless Steel, 1/4 NPT, Pilot Operated, 3 Way 2 Position, Normally Universal, Spring Return, Cv 0.73.

  • BXS-04-04-P1-32-NU-M15-V Van điều hướng/ Pilot Valve

Pilot Valve, 316 Stainless Steel, 1/4 NPT, Pilot or Pull Operated, 3 Way 2 Position, Normally Universal, Spring Return, Cv 0.73.

  • BXS-04-04-P1-32-NU-P1-V  Van điều hướng/ Pilot Valve

Van điều hướng/ Pilot Valve , 316 Stainless Steel, 1/4 NPT, Pilot Operated, 3 Way 2 Position, Normally Universal, Pilot Return, Cv 0.73.

  • BXS-04-04-P9-32-NC-M15-V-K54  Van điều hướng/ Pilot Valve

Mechanical/Pilot Valve, 316 Stainless Steel, 1/4 NPT, Air Latch Pilot or Pull to Operate, 3 Way 2 Position, Normally Universal, Cv 0.73.

  • SPR-08-08-M1-32-NU-00-V Van cơ học/ Manual Valve

Manual Valve, 316 Stainless Steel, 1/2 NPT, Push Button Operated, 3 Way 2 Position, Normally Universal, Spring Return, Cv 3.90.

  • SPR-08-08-M3-32-NU-04-V  Van cơ học/ Manual Valve

Manual Valve, 316 Stainless Steel, 1/2 NPT, Push-Pull Operated, 3 Way 2 Position, Normally Universal, Cv 3.90.

  • SPR-08-08-M9/1-32-NU-00-V  Van cơ học/ Manual Valve

Manual Valve, 316 Stainless Steel, 1/2 NPT, Push Button Operated, 3 Way 2 Position, Normally Universal, Spring Return, Padlockable, Cv 3.90.

  • SPR-08-08-P1-32-NU-00-V Van điều hướng/ Pilot Valve

Van thủy lực điều hướng/ Spool Valve, 316 Stainless Steel, 1/2 NPT, Pilot Operated, 3 Way 2 Position, Normally Universal, Spring Return.

  • SPR-08-08-P1-32-NU-P1-V  Van điều hướng/ Pilot Valve

Pilot Valve, 316 Stainless Steel, 1/2 NPT, Pilot Operated, 3 Way 2 Position, Normally Universal, Pilot Return, Cv 3.90.

  • SPR-08-08-P1-52-XX-00-V  Van điều hướng/ Pilot Valve

Pilot Valve, 316 Stainless Steel, 1/2 NPT, Pilot Operated, 5 Way 2 Position, Spring Return, Cv 3.90.

  • SPR-16-16-P1-32-NU-00-V  Van thủy lực điều hướng/ Spool Valve

Van thủy lực điều hướng/ Spool Valve, 316 Stainless Steel, 1 NPT, Pilot Operated, 3 Way 2 Position, Normally Universal, Spring Return.

  • SPR-16-16-P1-32-NU-P1-V  Van điều hướng/ Pilot Valve

Pilot Valve, 316 Stainless Steel, 1 NPT, Pilot Operated, 3 Way 2 Position, Normally Universal, Pilot Return, Cv 11.20.

  • SPR-16-16-P1-52-XX-00-V  Van điều hướng/ Pilot Valve

Pilot Valve, 316 Stainless Steel, 1 NPT, Pilot Operated, 5 Way 2 Position, Spring Return, Cv 11.20.

  • SPR-16-16-P16-52-XX-00-V  Van điều hướng/ Pilot Valve

Pilot Valve, 316 Stainless Steel, 1 NPT, Pilot Operated, 5 Way 2 Position, Spring Return, Cv 11.20.

  • HSJE06-P1-32-NU-00-K54  van/ Valve

316 stainless steel, 1/4 NPT, Pilot operated, 3 way 2 position, normally universal, spring return, hydraulic, C.v. 0.8, 10 bar (BAB)1/4 NPT, Pilot operated, 3 way 2 position, normally universal, spring return, hydraulic, C.v. 0.8, 10 bar (BAB)

  • HSJE06-P1-32-NU-P1-K54  Van/Valve

316 stainless steel, 1/4 NPT, Pilot operated, 3 way 2 position, normally universal, spring return, hydraulic, C.v. 0.8, 10 bar (BAB)1/4 NPT, Pilot operated, 3 way 2 position, normally universal, spring return, hydraulic, C.v. 0.8, 10 bar (BAB)

  • HSJJE06-2-PV-K54  Van/Valve

316 stainless steel, 1/4 NPT, 2 way 2 position, Push button to block, pull button to bleed, hydraulic, C.v. 0.8, 10 bar 1/4 NPT, 2 way 2 position, Push button to block, pull button to bleed, hydraulic, C.v. 0.8, 10 bar

  • HSJJE06-M14-32-NU-04-K54 Van/ Valve

Sainless steel, 1/4 NPT, Push/pull button, normally universal, detented, hydraulic, C.v. 0.8, 10 bar (BAB)1/4 NPT, Push/pull button, normally universal, detented, hydraulic, C.v. 0.8, 10 bar (BAB)

  • HSJJE06-M2-32-NU-00-K10-K54  Van/ Valve

316 stainless steel, 1/4 NPT, Push button, normally universal, spring return, hydraulic, C.v. 0.8, 10 bar (BAB)

  • HSJJE06-P1-32-NC-M15-K54  Van/ Valve

316 stainless steel, 1/4 NPT, Pull button or energise pilot to operate, normally closed, spring return, hydraulic, C.v. 0.8, 10 bar (BAB)HSJJ06-P1-32-NC-M15-K54

  • HSJJE06-P1-32-NC-M16-K54 Van/ Valve

316 stainless steel, 1/4 NPT, Pull button or energise pilot to operate, mechanical latch, normally closed, spring return, hydraulic, C.v. 0.8, 10 bar (BAB)HSJJ06-P1-32-NC-M16-K54

  • HSJJE06-P92-32-NC-M15-K54  Van/ Valve

316 stainless steel, 1/4 NPT, Pull button to energise air latch pilot, normally closed, spring return, hydraulic, C.v. 0.8, 10 bar (BAB)HSJJ06-P92-32-NC-M15-K54

  • HSJJE06-P92-32-NC-M16-K54  Van/ Valve

316 stainless steel, 1/4 NPT, Pull button to energise air latch pilot, normally closed, spring return, hydraulic, preliminary latch pin, C.v. 0.8, 10 bar (BAB)HSJJ06-P92-32-NC-M16-K54

  • S06-P1-32-NC-00  Van/ Valve

316 stainless steel, 1/4 NPT, Pilot operated, 3 way 2 position, normally closed, spring return, C.v. 1.8, 12 bar1/4 NPT, Pilot operated, 3 way 2 position, normally closed, spring return, C.v. 1.8, 12 bar

  • S06-P1-32-NC-P1 Van điều hướng Valve

316 stainless steel, 1/4 NPT, pilot operated, 3 way 2 position, normally closed, pilot return, C.v. 1.8, 12 bar

  • S06-P1-52-XX-00 Van điều hướng/ Valve

316 stainless steel, 1/4 NPT, Pilot operated, 5 way 2 position, normally closed, spring return, C.v. 1.8, 12 bar1/4 NPT, Pilot operated, 5 way 2 position, normally closed, spring return, C.v. 1.8, 12 bar

  • S06-P1-52-XX-P1 Van điều hướng/ Valve

316 stainless steel, 1/4" NPT, Pilot operated, 3 way 2 position, normally closed, pilot return, C.v. 1.8, 12 bar1/4" NPT, Pilot operated, 3 way 2 position, normally closed, pilot return, C.v. 1.8, 12 bar

  • S12-P1-32-NC-00  Van điều hướng/ Valve

316 Stainless Steel, 1/2 NPT, Pilot operated, 3 way 2 position, normally closed, spring return, C.v. 2.0, 12 bar1/2 NPT, Pilot operated, 3 way 2 position, normally closed, spring return, C.v. 1.8, 12 bar

  • S12-P1-32-NC-P1  Van điều hướng/ Valve

316 Stainless Steel, 1/2 NPT, Pilot operated, 3 way 2 position, normally closed, pilot return, C.v 2.0, 12 bar 1/2 NPT, Pilot operated, 3 way 2 position, normally closed, pilot return, C.v 1.8, 12 bar

  • SJE06-M12-32-NU-00  Van điều hướng/ Valve

Thép không rỉ 316, 1/4 NPT, vận hành trục CAM, 3 chiều 2 vị trí, phổ thông, lò xo phản hồi, C.v. 0.8, 10 bar áp suất vận hành, chặn trước khi xả 1/4 NPT, khí nén.

  • SJE06-P1-32-NU-00  Van điều hướng/ Valve

Thép không rỉ 316, 1/4 NPT, vận hành bằng điều khiển, 3 chiều 2 vị trí, phổ thông, lò xo phản hồi, C.V 0.8, 10 bar áp suất vận hành 1/4 NPT, khí nén, C.v. 0.8, 10 bar (BBB)

  • SJE06-P1-32-NU-P1  Van điều hướng/ Valve

Thép không rỉ 316, 1/4 NPT, vận hành bằng điều khiển, 3 chiều 2 vị trí, phổ thông, lò xo phản hồi, C.V 0.8, 10 bar áp suất vận hành 1/4 NPT, (BBB),

  • SJJ06-P9-32-NC-M15-K54-K27C Van điều hướng/ Valve

Thép không rỉ 316, 1/4 NPT, vận hành bằng điều khiển, 3 chiều 2 vị trí, phổ thông, lò xo phản hồi, C.V 0.8, 10 bar áp suất vận hành 1/4 NPT, khí nén, C.v. 0.8, 10 bar (BBB)

  • SJJE06-2-PV  valve

316 Stainless Steel,1/4 NPT, 2 way 2 position, Push button to block, pull button to bleed, C.v. 0.8, 10 bar working pressure1/4 NPT, 2 way 2 position, Push button to block, pull button to bleed, pneumatic, C.v. 0.8, 10 bar

  • SJJE06-3-PV  Van điều hướng/ Valve

316L stainless steel, 1/4 NPT, 3 way 2 position, Push button to charge, pull button to bleed, C.v. 0.8, 10 bar working pressure1/4 NPT, 3 way 2 position, Push button to charge, pull button to bleed, pneumatic, C.v. 0.8, 10 bar (BBB)

  • SJJE06-P1-32-NC-M15-K54  Van điều hướng/ Valve

316 Stainless Steel, 1/4 NPT, Pull button or energise pilot to operate, mechanical latch, normally closed, spring return, C.v. 0.8, 10 bar working pressure, block after bleedSJJ06-P1-32-NC-M16-K54

  • SJJE06-P9-32-NC-M15-K54  Van điều hướng/ Valve

316 Stainless Steel, 1/4 NPT, Pull button to energise air latch pilot, normally closed, spring return, C.v. 0.8, 10 bar working pressure, block after bleed. SJJ06-P9-32-NC-M15-K54

  • SJJ06-FOI-RA-L97  Bộ hiển thị/ First Out Indicator

First Out Indicator, ¼ NPT Ports, 3 Way 2 Position, Pilot Operated, Receiving. Cv 0.7, 10 bar

  • SJJ06-FOI-RB-L97  Bộ hiển thị/ First Out Indicator

First Out Indicator, ¼ NPT Ports, 3 Way 2 Position, Pilot Operated, Receiving. Cv 0.7, 10 bar

  • SJJ06-FOI-T-L97  Bộ hiển thị/ First Out Indicator

First Out Indicator, ¼ NPT Ports, 3 Way 2 Position, Pilot Operated, Transmitting. Cv 0.7, 10 bar



=====================================================
