Van giảm áp hãng Niezgodka Art No.: F019072 Type: 70.2-

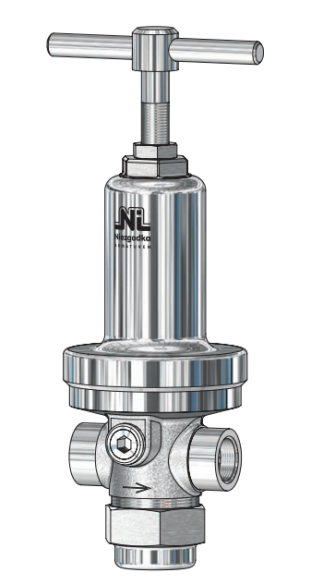

Pressure Reducing Valve Niezgodka _ Art No.: F019072 Type: 70.2
Tên thiết bị: Art No.: F019072 Type: 70.2—Van giảm áp

Nhà sản xuất: Niezgodka

Nhà cung cấp: ANS Việt Nam, Đại lý Niezgodka tại Việt Nam, Niezgodka Vietnam

Vui lòng liên hệ theo Email 📧 kim@ansgroup.asia  ☎ 0988 782 338 để nhận giá hỗ trợ ngay

Đặc điểm Van giảm áp Niezgodka



Art No.: F019072
Van giảm áp (không có chứng nhận CE)
Type: 70.2
Size: I
Material: 1.4301 / 1.4571
Piston plate: ø 64 mm
Process connection: pipe thread acc. to ISO 228, female
Inlet: G 1
Outlet: G 1
Disc sealing: FPM
Other sealings: FPM / PTFE
Spring no.: 304
Code: I-K064-F304-FPM
Kvs-value: 3,5 m³/h
Inletpressure P1: 7,0 - 10,0 bar(g)
Outletpressure P2: 0,7 - 1,2 bar(g)
Nominal pressure: PN 16
Temperature: 20°C
Pressure-reducing valve in case of 0-throughput shut tightly, body with 2 manometer connections G ¼.

  • Hướng dẫn bảo trì và sửa chữa:



https://www.niezgodka.de/portfolio_page/070-typ-70-druckminderventil/
