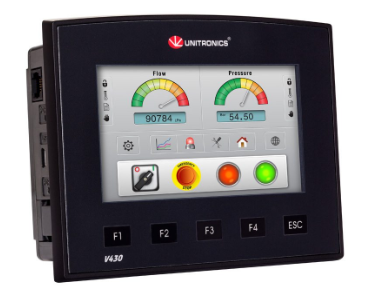

Vision430™- PLC Controller with integrated HMI Touchscreen

Advanced PLC controller integrated with a 4.3″ wide-aspect, color touchscreen. Includes onboard I/O configurations; expands up to 512 I/Os.

PLC

HMI

Communication



V430-J-B1 Flat Front
24VDC, no on-board I/Os, can be connected to expansion modules, RS232/RS485
V430-J-R34 Flat Front
24VDC, 20 Digital Inputs, 2 Analog/Digital Inputs, 12 Relay Outputs, RS232/RS485
V430-J-RA22 Flat Front
24VDC, 8 Digital Inputs, 2 Analog/Digital Inputs, 2 TC/PT/Digital Inputs, 8 Relay Outputs, 2 Analog Outputs, RS232/RS485
V430-J-T2 Flat Front
24VDC, 10 Digital Inputs, 2 Analog/Digital Inputs, 12 Transistor Outputs, RS232/RS485
V430-J-T38 Flat Front
24VDC, 20 Digital Inputs, 2 Analog/Digital Inputs, 16 Transistor Outputs, RS232/RS485
V430-J-TA24 Flat Front
24VDC, 8 Digital Inputs, 2 Analog/Digital Inputs, 2 TC/PT/Digital Inputs, 10 Transistor Outputs, 2 Analog Outputs, RS232/RS485
V430-J-RH2 Flat Front
24VDC, 10 Digital Inputs, 2 Analog/Digital Inputs, 6 Relay Outputs, RS232/RS485
V430-J-TR34 Flat Front
24VDC, 17 Digital inputs, 3 HSC with up to 200kHz,2 Analog/ Digital inputs, 8 Relay outputs,  4 npn- HSO- 5Hz-200kHz ( 3 PTO),RS232/RS485.
V430-J-RH6 Flat Front
24VDC, 6 Digital Inputs, 2 Digital/Analog (current/voltage) Inputs, 4 Analog (current), 6 Relay Outputs, RS232/485
V430-J-TRA22 Flat Front
24VDC, 5 Digital inputs, 1 Digital/ HSC, 2 Analog/ Digital inputs, 2 PT100/ Thermocouple or 4 Digital inputs, 4 Relay outputs, 4 npn- HSO- 5Hz-200kHz ( 2 PTO), 2 Analog outputs, RS232/RS485.
