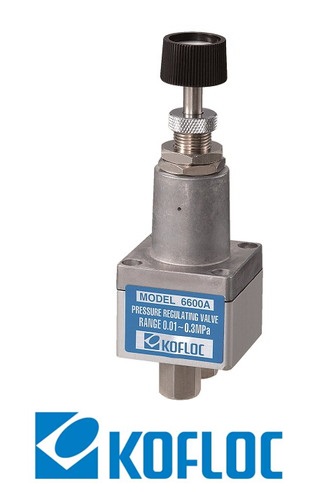

6600  Van điều áp Kofloc Vietnam ANSdanang

Model 6600A 6600B 6600AL 6600BL
Maximum primary pressure 0.8MPa
Secondary control pressure 0.01–0.3MPa 0.03–0.6MPa 0.01–0.3MPa 0.03–0.6MPa
Minimum operating differential pressure 0.05MPa
Proof pressure 0.8MPa
Repeatability Within ±1% of the pressure rating
Temperature characteristics Within ±1% of the pressure rating per 10℃
Heat resistance 5℃-60℃
Flow rating See the graph.
Connection end Rc 1/4 (standard), Rc 1/8
Materials of parts in
contact with fluids
(A) Al, brass, NBR, POM, SUS316
(SS) SUS316, FKM, fluorocarbon resin
